All monitored parameters have user-adjustable limits (high and low) to ensure your operation performs precisely to specification. The Base Station also features an industry-standard RS232 port, so users can integrate directly into their PLC, using the built-in relay to automatically shut down operations if the process strays outside the set limits. As an added benefit, the user can rename sensors for easy identification.
Wireless Features
- Encrypted Data Connection
- Compatible with all of KALLER's IoT Systems
Mechanical Features
- Rugged Aluminum Enclosure
- VESA Mounting Pattern
- 10.1-Inch Touchscreen Display
- M12 4-Pin Connector
- Includes Relay Output
- DB9 RS232 Connector for Local Data Output
- External Antenna for Better Range
- Access Control (Admin Features)
Software Features
- 250-Tool Library
- Capable of Monitoring 12 Sensors per Tool
- Sensor and Tool Naming Functions
- Warning and Fault Options
- Adjustable High and Low-Pressure Limits
- Adjustable High-Temperature Limit
- Fault Options will Trip Relay
- Display Units: F/PSI, C/BAR, or C/MPa
Available in two Overview Versions:
Choose between two software models that have different home monitoring screens, that provide different overviews based on your needs.

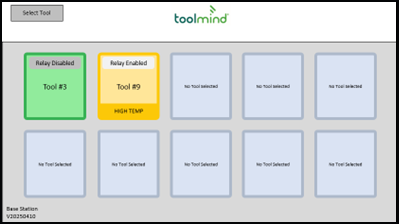

Standard
Base-Sense-01:
The standard package will transmit data of tools set on the overview screen (max of 10 tools at one time) while the overview screen is being monitored, or a tool that has been selected to be monitored.

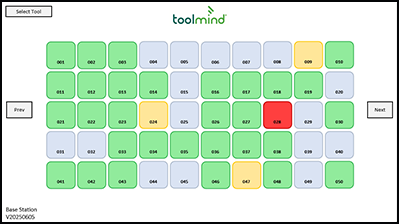

Storage
Base-Sense-02:
The Tool Storage Package transmits data for all 250 tools while monitoring any page of the storage screen. When monitoring a specific tool the unit will only transmit data from that specific tool.
Measurements & Drawings
View the Toolmind® User Manual, Certifications and Brochures on the Toolmind website:
