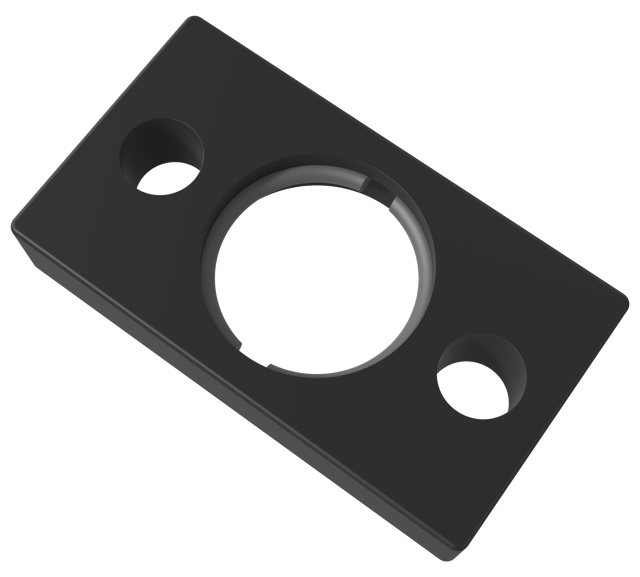

BF-19
BF is a flange mount used to clamp the base of the gas spring
to the tool by using the lower C-groove of the gas spring.
Diagram / specifications section
Preview
Preview
| A | A (in) | 1,772 |
| B | B (in) | 1,26 |
| C | C (in) | 0,984 |
| D | D (in) | 0,394 |
| E | E (in) | 0,276 |
| F | F (in) | 0,276 |
