FCR-25

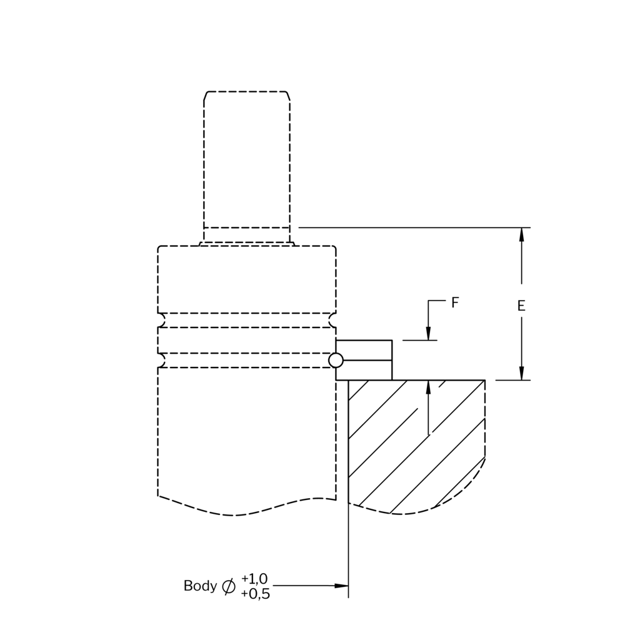

FCR is a rectangular flange mount used to mount the gas spring in the upper C-groove. FCR meets ISO 11901-2, VDI 3003, GM 90.25 and other standards

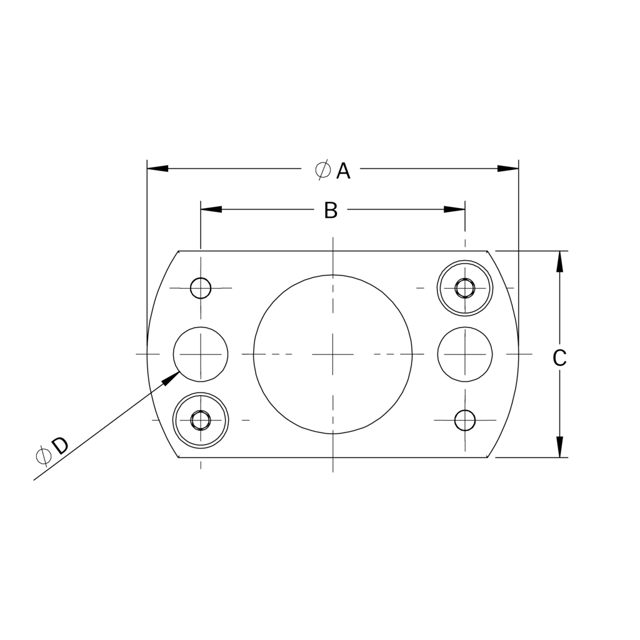

Diagram / specifications section
Preview
Preview
| A | A (in) | 1,969 |
| B | B (in) | 1,496 |
| C | C (in) | 1,181 |
| D | D (in) | 0,276 |
| F | F (in) | 0,354 |
