FSLT-1500

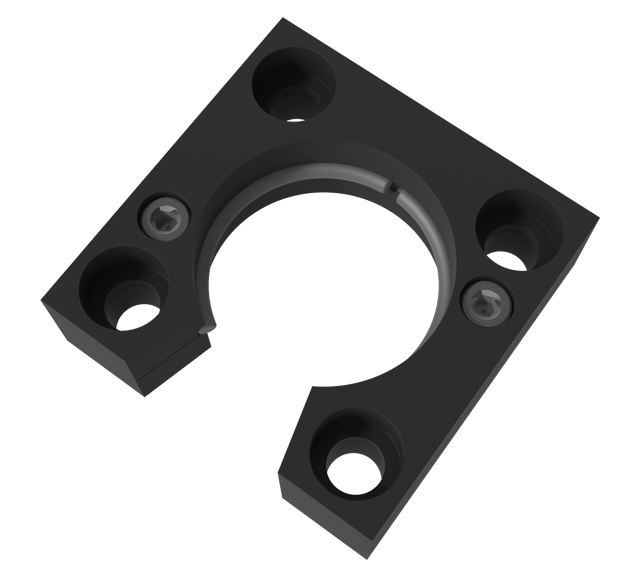

- The FSL flange type originally was developed to fit gas springs with a lower C-groove and consists of two halves with a lock ring between.
- The FSL flange can be used for both upright and upside-down installations.
- The FSL flange can also be used on gas springs with a lower U-groove by using the additional FSL adapter ring.
- The FSL adapter ring is ordered separately and is to replace the standard lock ring included in the FSL flange.

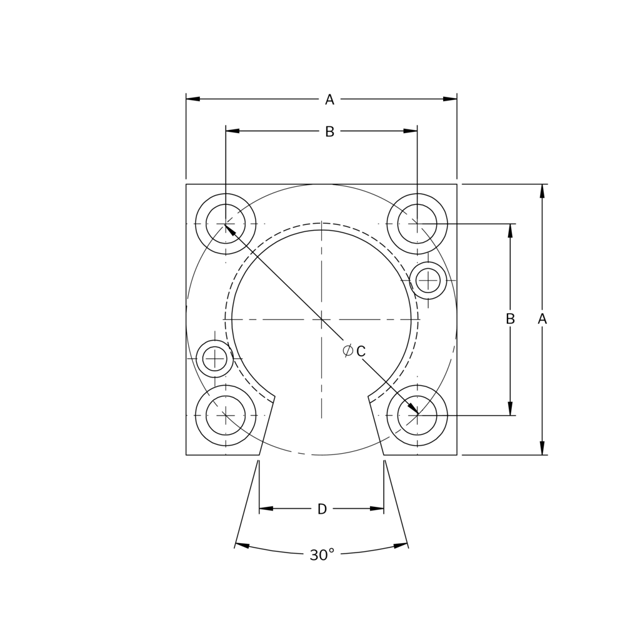

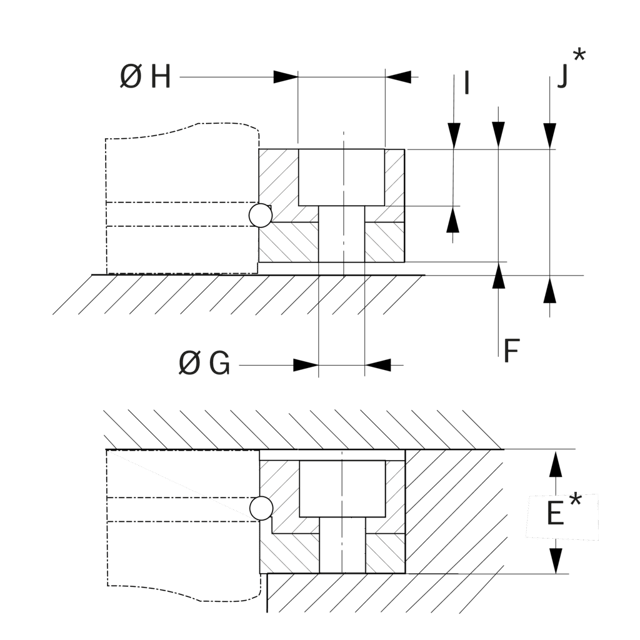

Diagram / specifications section
Preview
Preview
| A | A (in) | 3,937 |
| B | B (in) | 2,894 |
| C | C (in) | 4,091 |
| D | D (in) | 1,929 |
| E | E (in) | 1,004 |
| F | F (in) | 0,945 |
| G | G (in) | 0,433 |
| H | H (in) | 0,709 |
| I | I (in) | 0,394 |
| J | J (in) | 0,984 |
