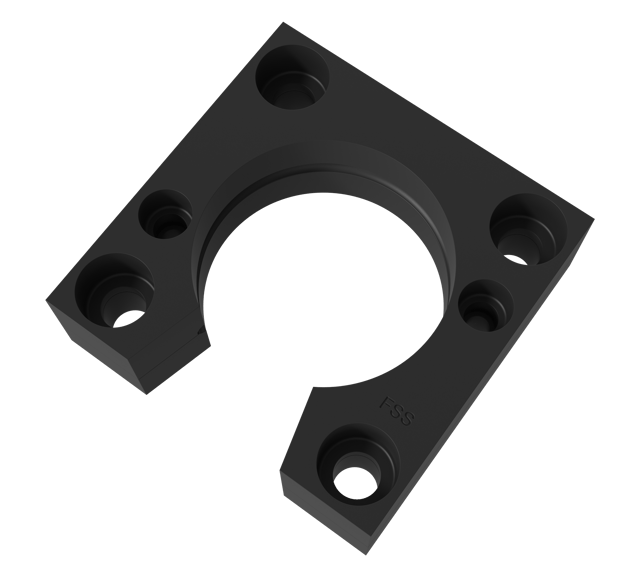

FSS-1500
The FSS mount is of the same type as the FSL mount, but with external dimensions and hole pattern as the FFC mount. The FSS mount fits on gas springs with a lower U-groove. The FSL adapter ring is included in the FSS mount and does not need to be ordered separately. The FSS mount can be used for both upright and upside down installation.
The FSS mount meets the Subaru standard SD116401.
The FSS mount meets the Subaru standard SD116401.

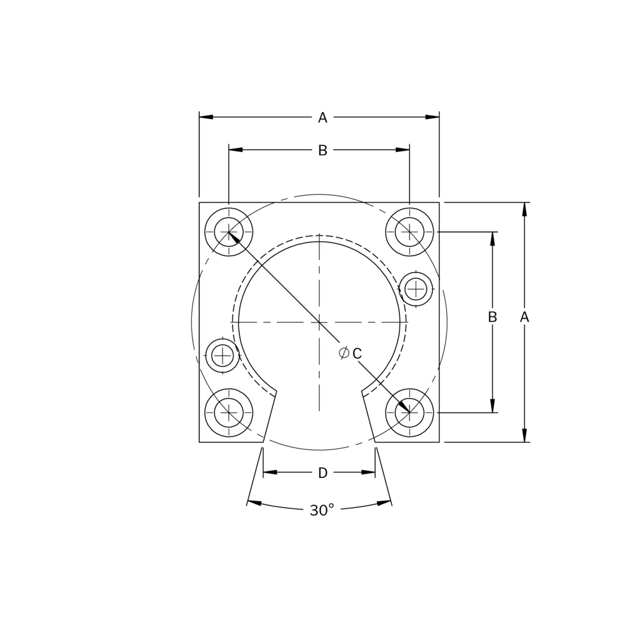

Diagram / specifications section
Preview
Preview
| A | A (in) | 3,937 |
| B | B (in) | 2,894 |
| C | C (in) | 4,094 |
| D | D (in) | 1,929 |
| E | E (in) | 1,024 |
| F | F (in) | 1,02 |
| G | G (in) | 0,433 |
| H | H (in) | 0,709 |
| I | I (in) | 0,512 |
| J | J (in) | 1,024 |
