K-1500

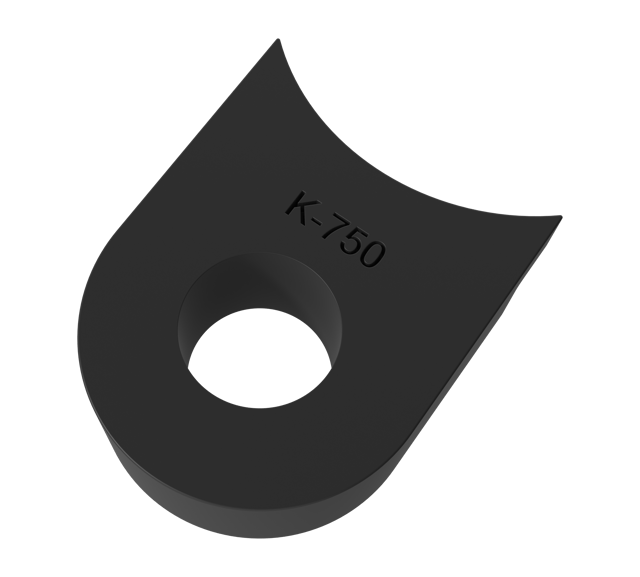

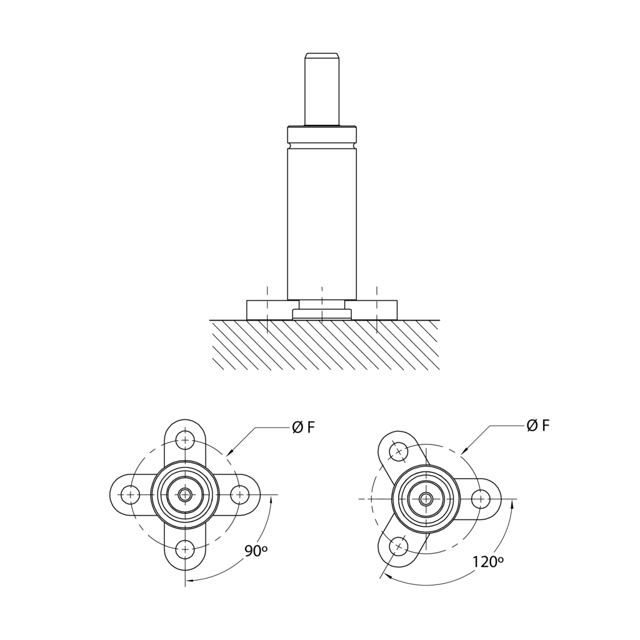

The K-lug is used to clamp the gas spring vertically upright to the tool. The gas spring can be clamped down using 2, 3 or 4 K-lugs.
If only 2 lugs are used, then locking plate L must also be used to fix the gas spring.

Note: When using locking plate L together with K-lugs, the spring cannot be hosed together as the L-plate will cover the gas charge port of the gas spring.

Important! The K-lugs are only to be used to mount the spring vertically upright.
