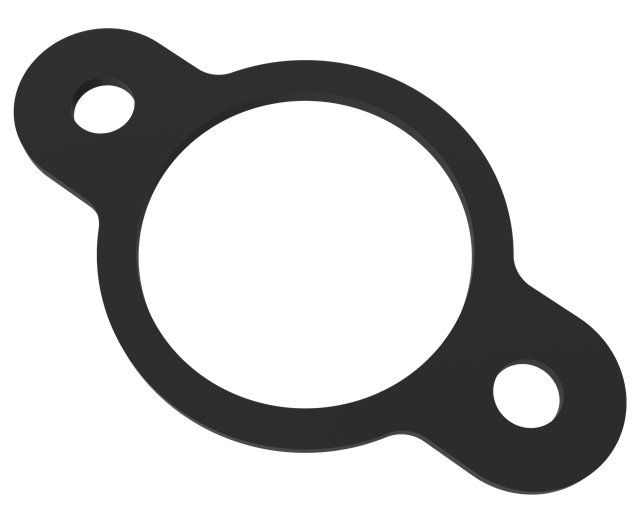

L-1500
When fixing gas springs vertically using 2 K-lugs, locking plate L must be used at the same time to ensure that the spring will be fixed radially.

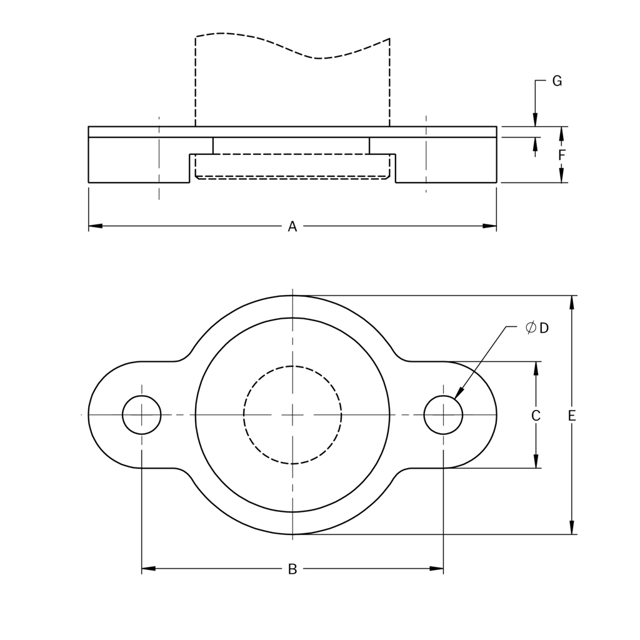

Diagram / specifications section
Preview
| A | A (in) | 5,276 |
| B | B (in) | 4,094 |
| C | C (in) | 1,181 |
| D | D (in) | 0,512 |
| E | E (in) | 3,386 |
| F | F (in) | 0,65 |
| G | G (in) | 0,098 |
