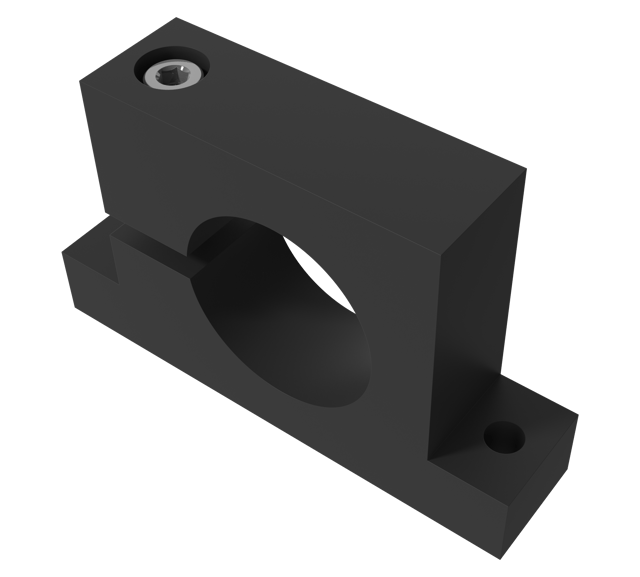

S-5000
The S mount is a horizontal body mount allowing the gas spring to be installed in any orientation within the die.

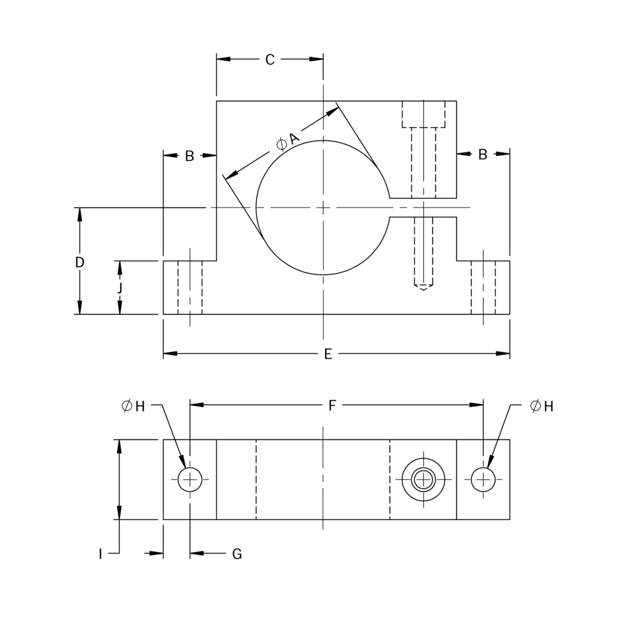

Diagram / specifications section
Preview
| A | A (in) | 4,74 |
| B | B (in) | 1,083 |
| C | C (in) | 3,051 |
| D | D (in) | 2,913 |
| E | E (in) | 8,661 |
| F | F (in) | 7,677 |
| G | G (in) | 0,492 |
| H | H (in) | 0,512 |
| I | I (in) | 1,181 |
| J | J (in) | 0,787 |
