SPCX-1900

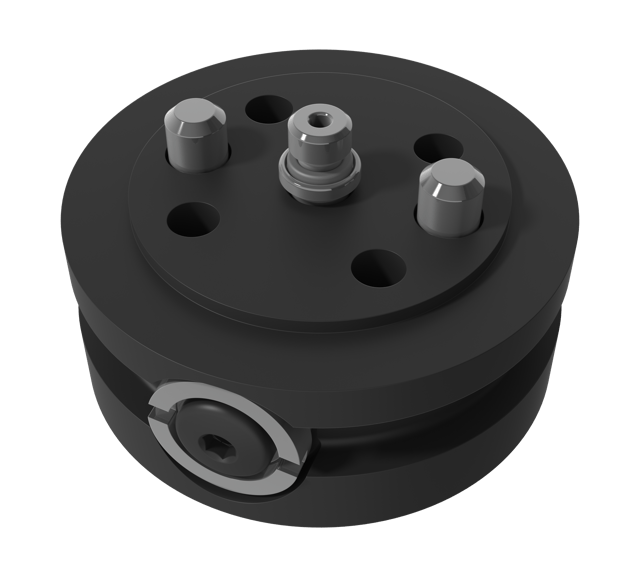

SPCX is a Side Port plate for the CX spring used for connecting into a hosed or linked system

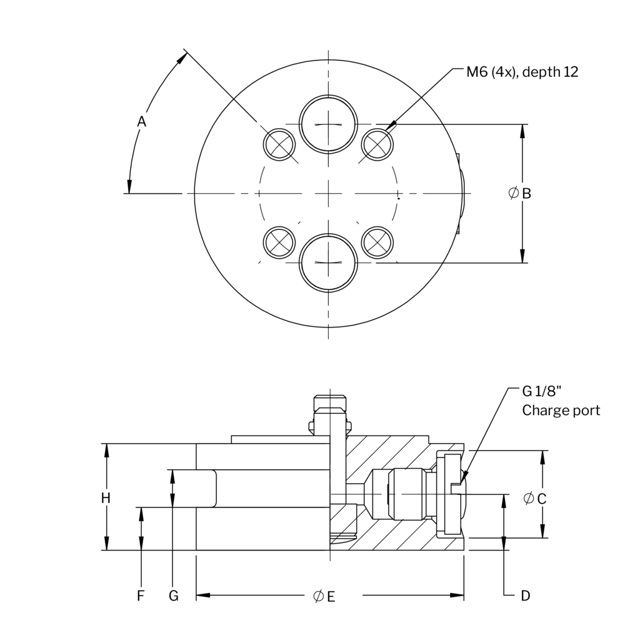

Diagram / specifications section
Preview
| A | A (in) | 1,772 |
| B | B (in) | 1,024 |
| C | C (in) | 0,646 |
| D | D (in) | 0,413 |
| E | E (in) | 1,976 |
| F | F (in) | 0,315 |
| G | G (in) | 0,276 |
| H | H (in) | 0,787 |
