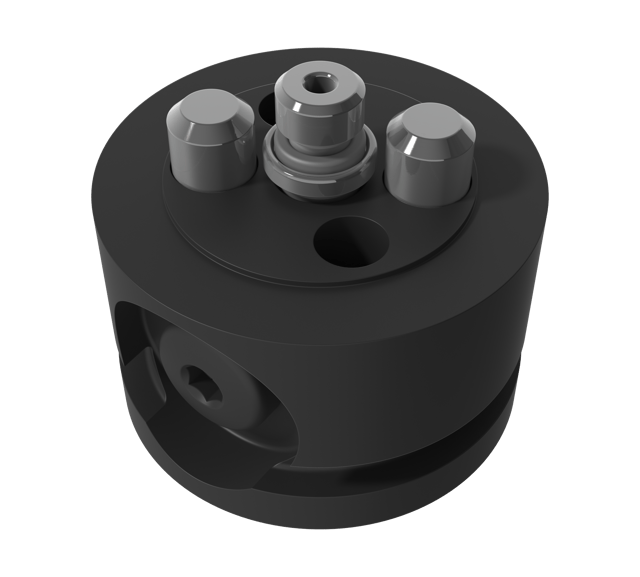

SPCX-500
SPCX is a Side Port plate for the CX spring used for connecting into a hosed or linked system

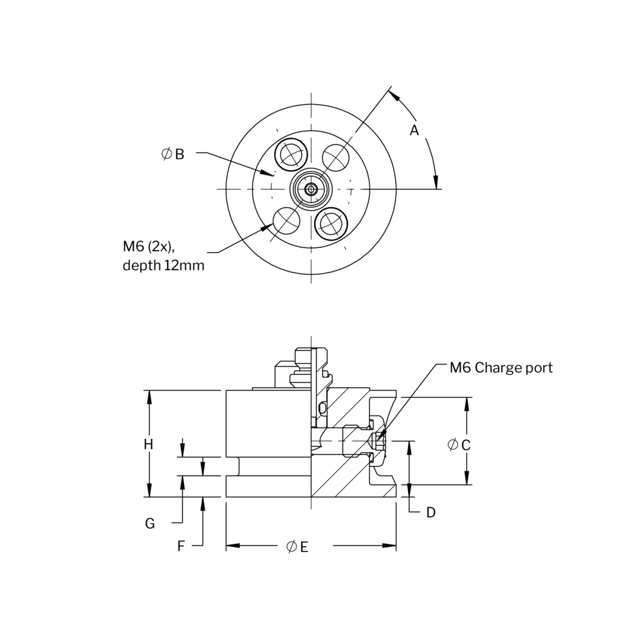

Diagram / specifications section
Preview
| A | A (in) | 2,047 |
| B | B (in) | 0,591 |
| C | C (in) | 0,646 |
| D | D (in) | 0,413 |
| E | E (in) | 1,256 |
| F | F (in) | 0,157 |
| G | G (in) | 0,138 |
| H | H (in) | 0,787 |
