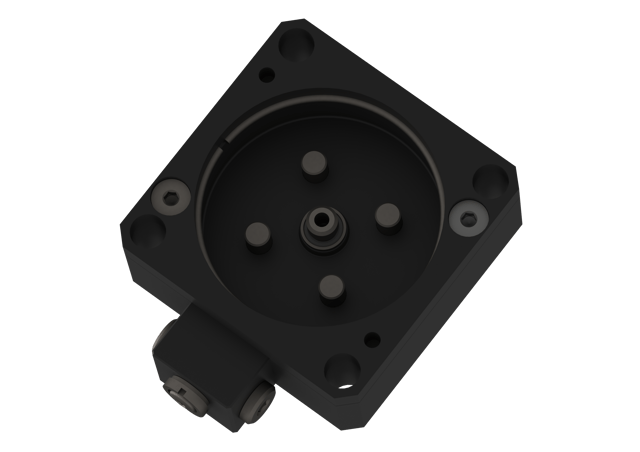

SPRM-95
SPRM is a Side Port Rear Mount for the CU4 spring (CU4 4700 - 18300) used for connecting into a hosed or linked system. The SPRM mount is included the Ford W-DX35-62 global standard.

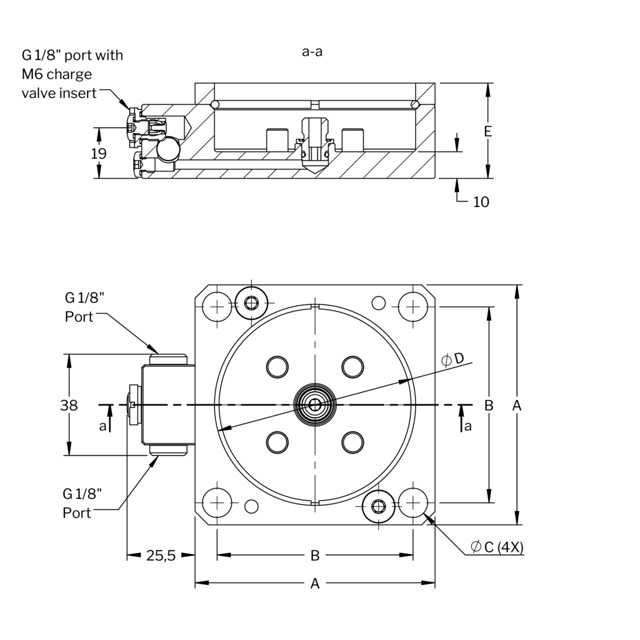

Diagram / specifications section
Preview
| A | A (in) | 4,331 |
| B | B (in) | 3,622 |
| E | E (in) | 1,575 |
Documents & Downloads
| Date | Type | Title | Size | |
|---|---|---|---|---|
| 2022-12-15 | UserManual | 8200-1109 User Guide, SP, SPRM Plates, en.pdf | 246 kB | Download |
