CU4 2900-010
The CU4 gas spring is a very compact Bore Sealed gas spring with impressive force in a compact body.
The maximum frequency for the spring is 100 strokes/ minute.
Springs with stroke lengths over 25 mm should always be attached to the tool, using a flange or the tapped holes in the bottom of the spring. We also recommend fixing of shorter stroke springs for optimal service life.

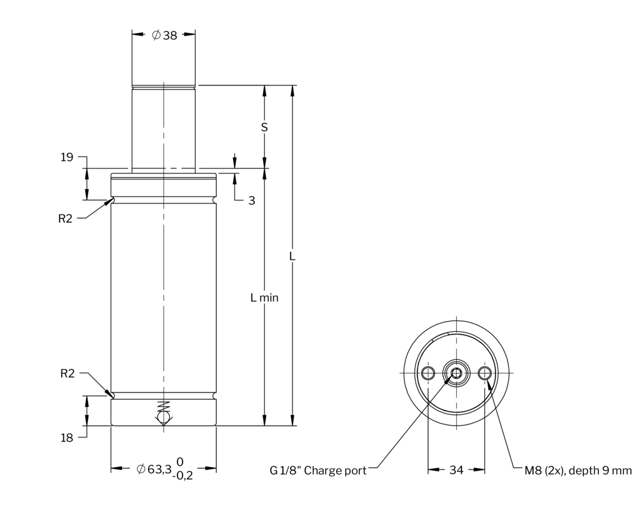

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 2.95 |
| S | Stroke Length (in) | 0.39 |
| L | Total Length (in) | 3.35 |
Item specifications
- End Force At Full Stroke (LBF)8990
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.002825173
- Initial Force at max. pressure (lbf) 6630
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)2.508
