CU4 740-040

CU4 740-040

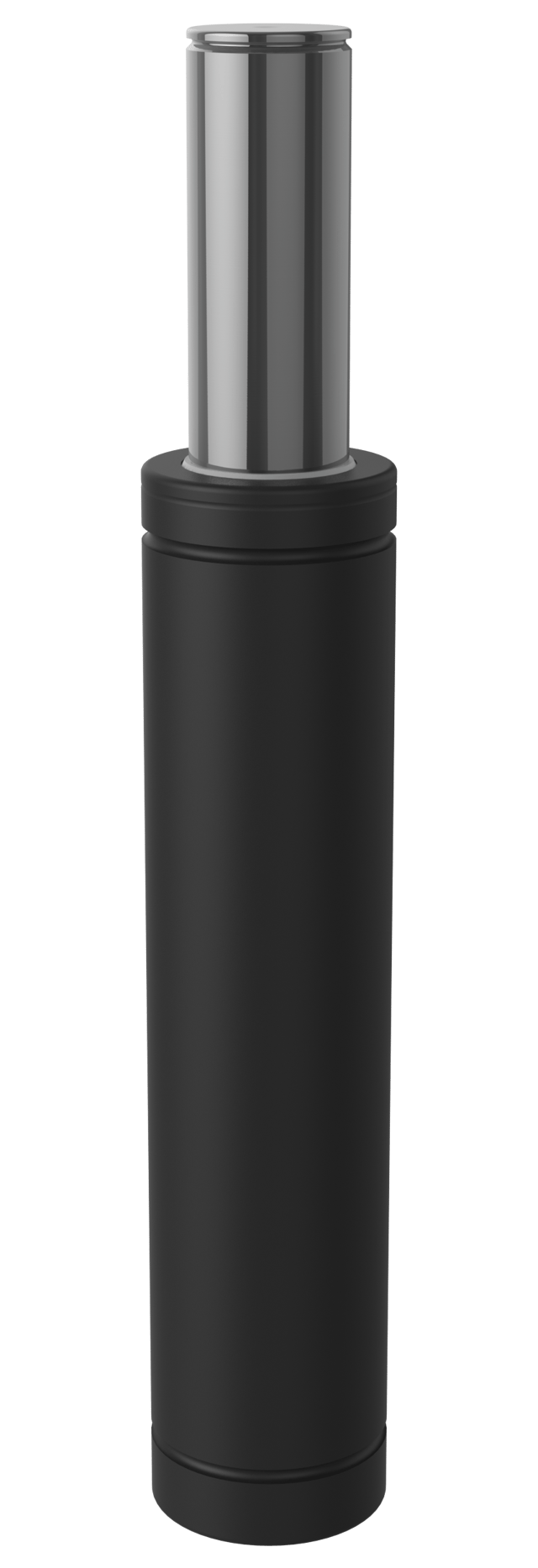

The CU4 gas springs are a very compact Bore Sealed gas springs, offering impressive force in a compact body.
Springs with stroke lengths over 25 mm should always be attached to the tool, using a flange or the tapped holes in the bottom of the spring. We also recommend fixing of shorter stroke springs for optimal service life.
HALLÅHALLÅOverload protection system icon

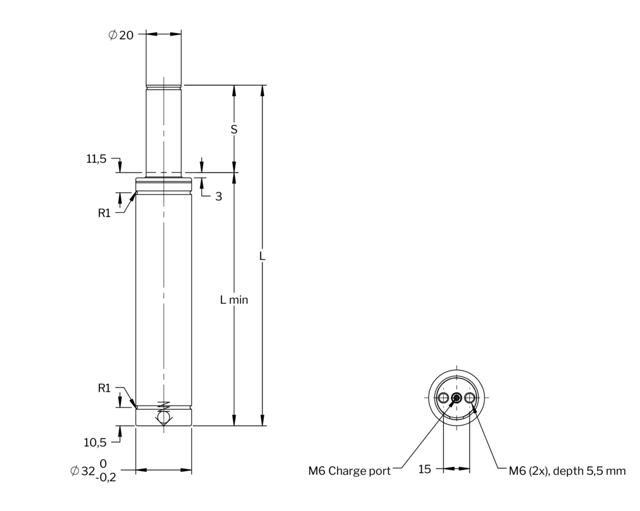

Diagram / specifications section

Preview
L minMinimum Length (in)4.92
SStroke Length (in)1.57
LTotal Length (in)6.5
* Should always be attached to the tool using the tapped holes in the bottom or a flange.

Item specifications

  • End Force At Full Stroke (LBF)2700
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.001836363
  • Initial Force at max. pressure (lbf) 1660
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)157.48
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~ 50-100
  • Weight (lb)0.924
