CU4 SP 1800-032

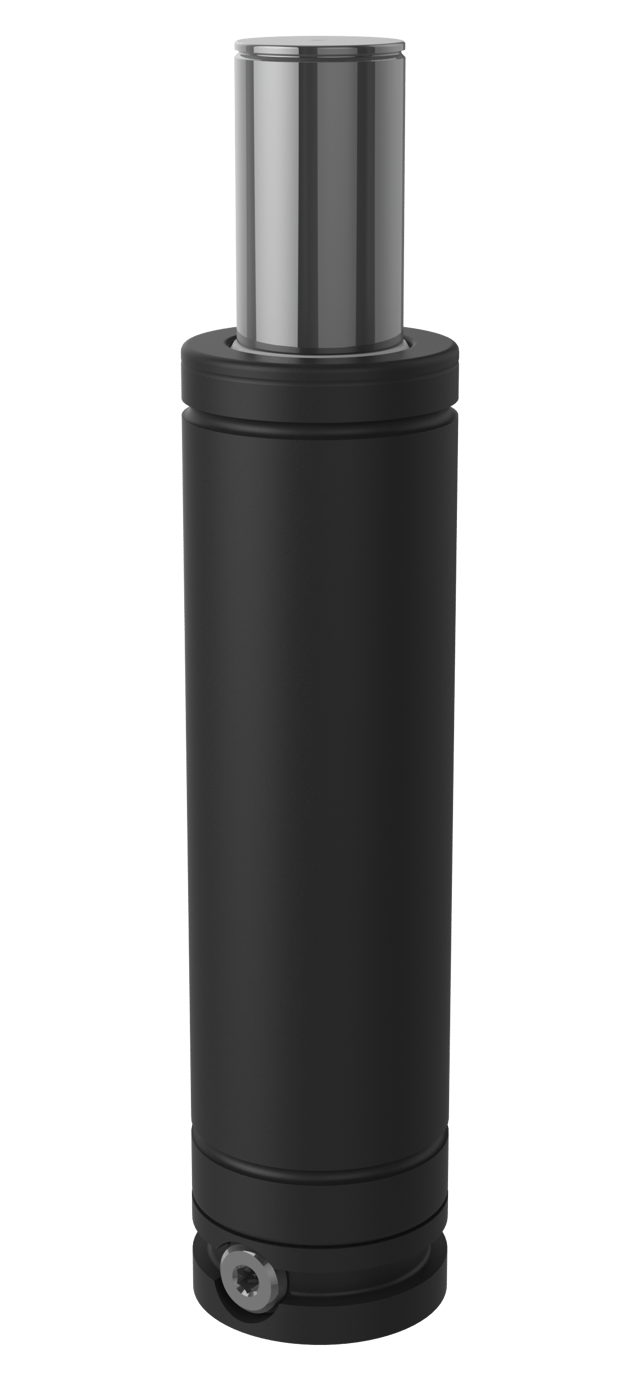

This is the CU4 spring with a Side Port plate (SP) for applications where a sideport is needed, for example in hose systems.
Springs with stroke lengths over 25 mm should always be attached to the tool, using a flange or the tapped holes in the bottom of the spring. We also recommend fixing of shorter stroke springs for optimal service life.

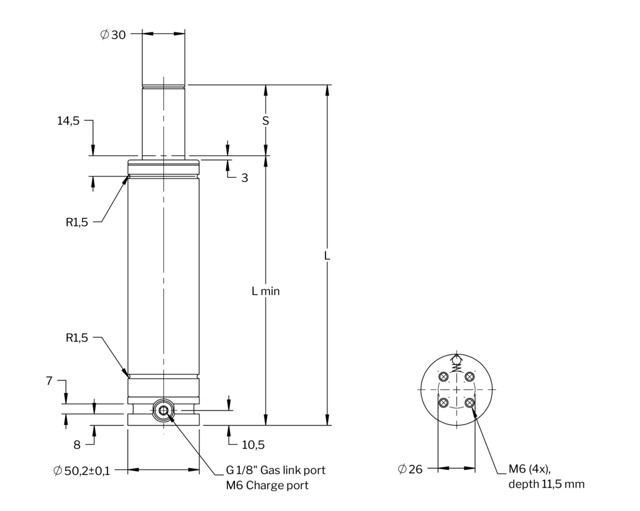

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 5.91 |
| S | Stroke Length (in) | 1.26 |
| L | Total Length (in) | 7.17 |
Item specifications
- End Force At Full Stroke (LBF)5845
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.004449648
- Initial Force at max. pressure (lbf) 4050
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 100
- Weight (lb)2.332
