CU4 SP 2900-065

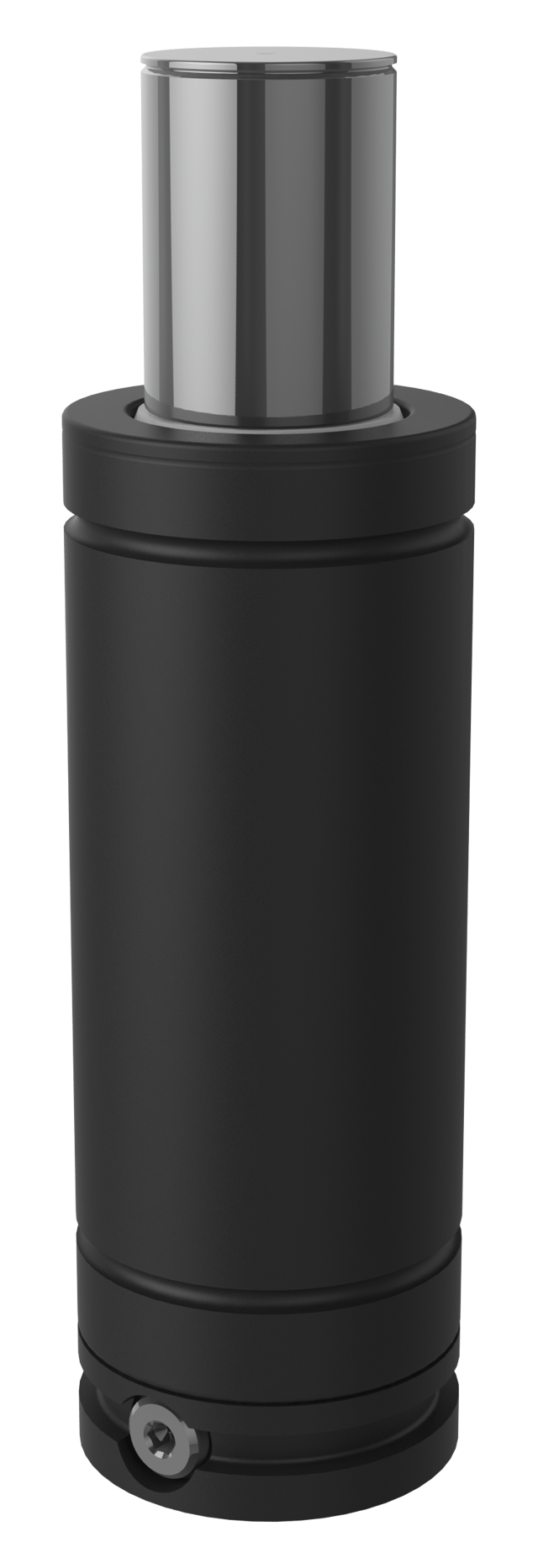

This is the CU4 spring with a Side Port plate (SP) for applications where a sideport is needed, for example in hose systems.
Springs with stroke lengths over 25 mm should always be attached to the tool, using a flange or the tapped holes in the bottom of the spring. We also recommend fixing of shorter stroke springs for optimal service life.

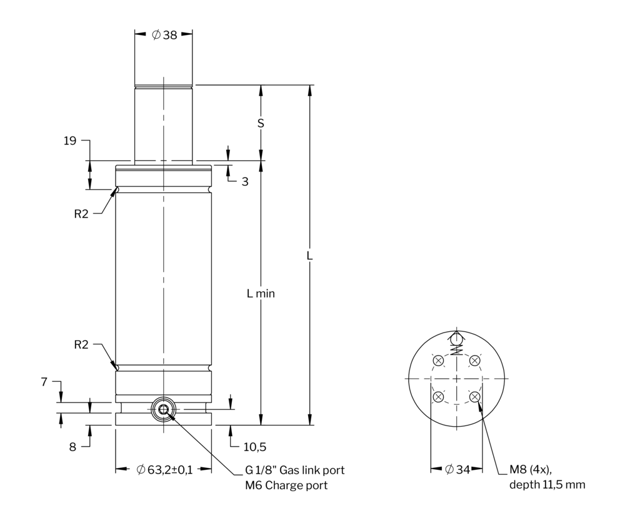

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 8.31 |
| S | Stroke Length (in) | 2.56 |
| L | Total Length (in) | 10.87 |
Item specifications
- End Force At Full Stroke (LBF)10570
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.012360133
- Initial Force at max. pressure (lbf) 6630
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)5.258
Accessories
Recommended mounts
- FFX-1500
