CU4 SP 4700-025

CU4 SP 4700-025

This is the CU4 spring with a Side Port plate (SP) for applications where a sideport is needed, for example in hose systems.
Springs with stroke lengths over 25 mm should always be attached to the tool, using a flange or the tapped holes in the bottom of the spring. We also recommend fixing of shorter stroke springs for optimal service life.
HALLÅHALLÅOverload protection system icon

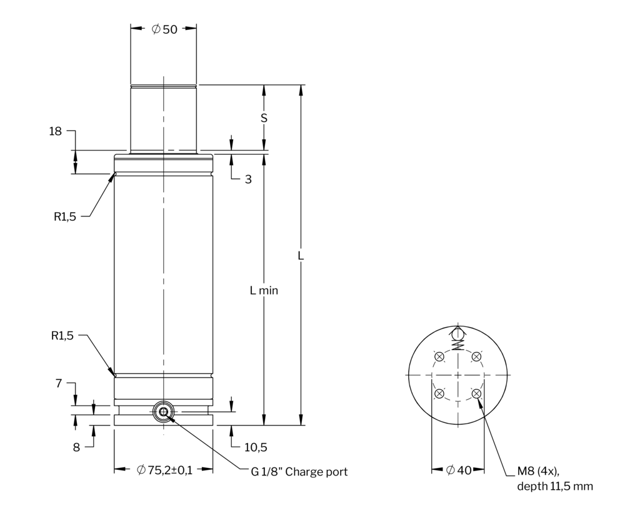

Diagram / specifications section

Preview
L minMinimum Length (in)5.12
SStroke Length (in)0.98
LTotal Length (in)6.1

Item specifications

  • End Force At Full Stroke (LBF)15300
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.00847552
  • Initial Force at max. pressure (lbf) 10570
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)157.48
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~ 80-100
  • Weight (lb)4.51
