CU4 SP 7500-025

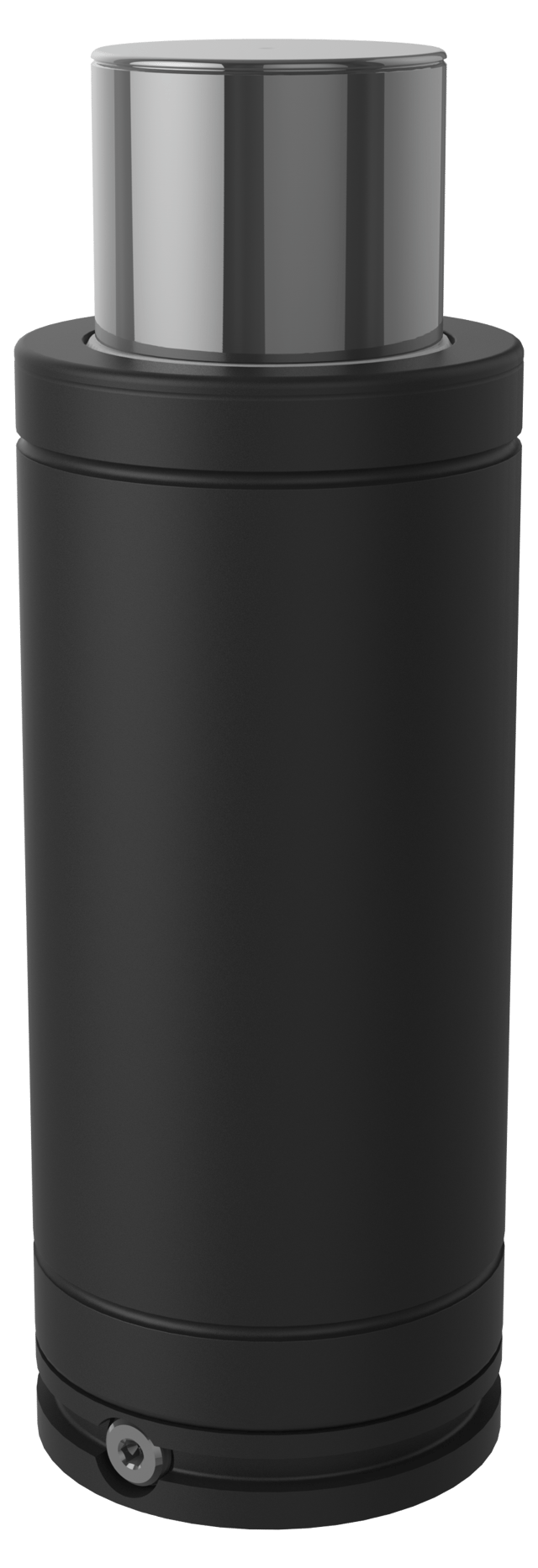

This is the CU4 spring with a Side Port plate (SP) for applications where a sideport is needed, for example in hose systems.
Springs with stroke lengths over 25 mm should always be attached to the tool, using a flange or the tapped holes in the bottom of the spring. We also recommend fixing of shorter stroke springs for optimal service life.

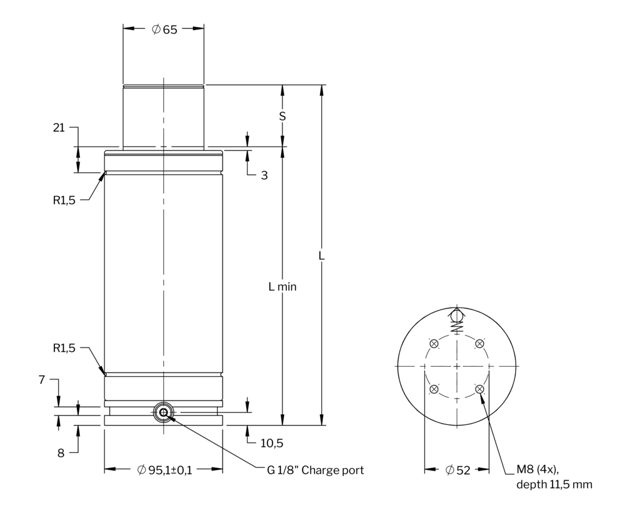

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 5.51 |
| S | Stroke Length (in) | 0.98 |
| L | Total Length (in) | 6.5 |
Item specifications
- End Force At Full Stroke (LBF)23380
