CU4 SPRM 4700-010

CU4 SPRM 4700-010

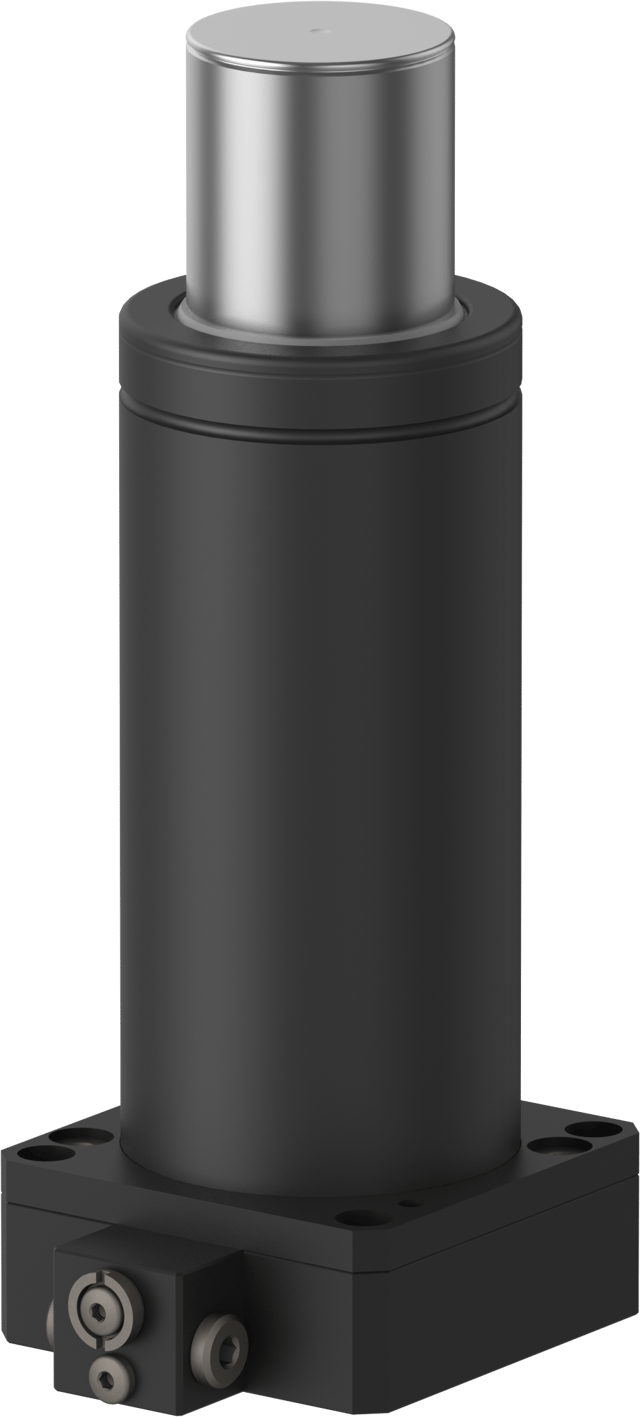

This is the CU4 spring with a Side Port Rear Mount (SPRM) for applications where a sideport is needed, for example in hose systems.
The CU4 SPRM is equipped with a side port rear mount (SPRM) for applications where a sideport is needed (e.g., for use in hose systems).
HALLÅHALLÅOverload protection system icon

Diagram / specifications section

Preview
L minMinimum Length (in)3.15
SStroke Length (in)0.39
LTotal Length (in)3.54

Item specifications

  • End Force At Full Stroke (LBF)15100
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.003531467
  • Initial Force at max. pressure (lbf) 10570
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)157.48
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~ 80-100
  • Weight (lb)6.16
