CU4 SPRM 7500-025

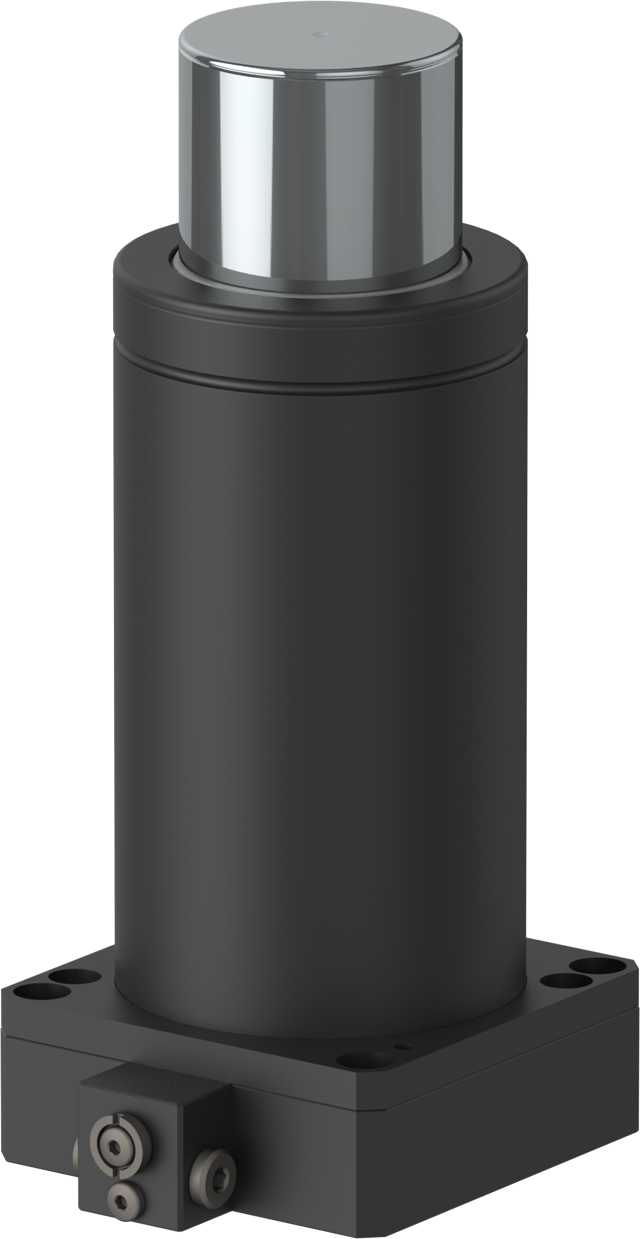

This is the CU4 spring with a Side Port Rear Mount (SPRM) for applications where a sideport is needed, for example in hose systems.
The CU4 SPRM is equipped with a side port rear mount (SPRM) for applications where a sideport is needed (e.g., for use in hose systems).

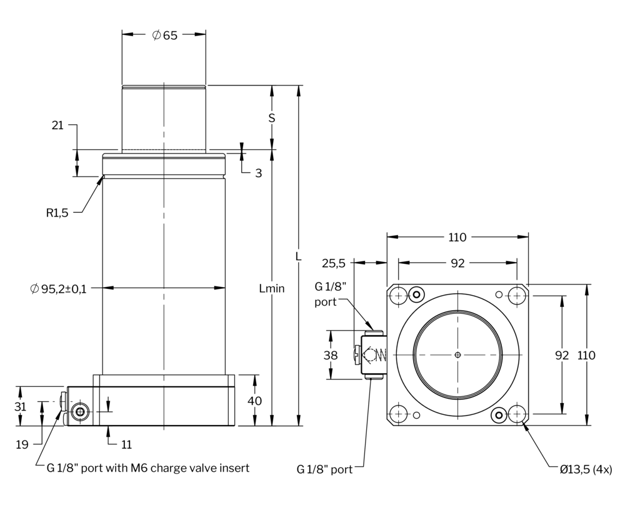

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 5.12 |
| S | Stroke Length (in) | 0.98 |
| L | Total Length (in) | 6.1 |
Item specifications
- End Force At Full Stroke (LBF)23380
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.014479013
- Initial Force at max. pressure (lbf) 16860
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)11.946
