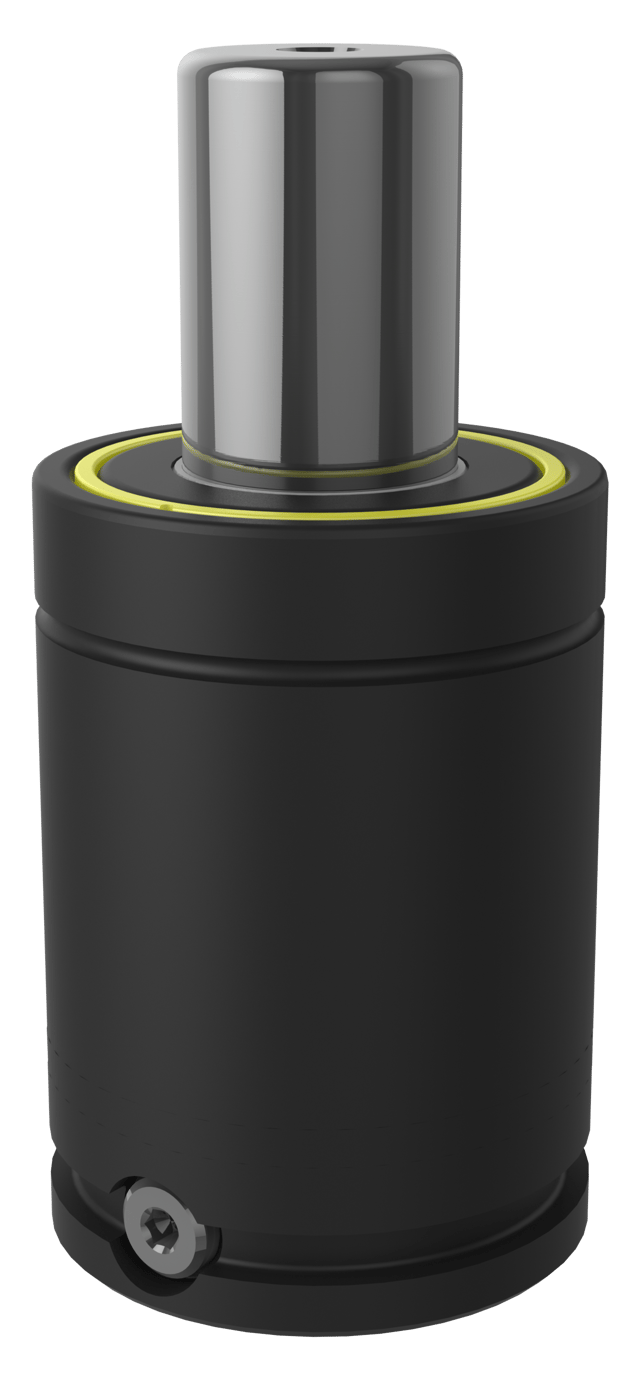

K 1500-064
This is a short height spring with an initial force of 15,000 N.
The K 1500 has a total length of 60 mm + (2 × stroke).
This spring is 50 mm shorter than the TU 1500.

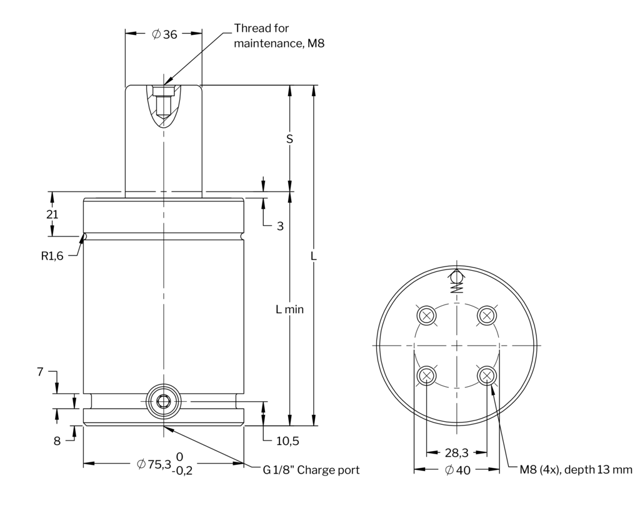

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 4.86 |
| S | Stroke Length (in) | 2.5 |
| L | Total Length (in) | 7.36 |
Item specifications
- End Force At Full Stroke (LBF)5170
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.007769227
- Initial Force at max. pressure (lbf) 3375
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)6.05
