K 500-050
This is a short height spring with an initial force of 4,700 N.
The K 500 has a total length of 50 mm + (2 × stroke).
This spring is 35 mm shorter than the TU 500.
Mounting options are the same as for the TU 500.

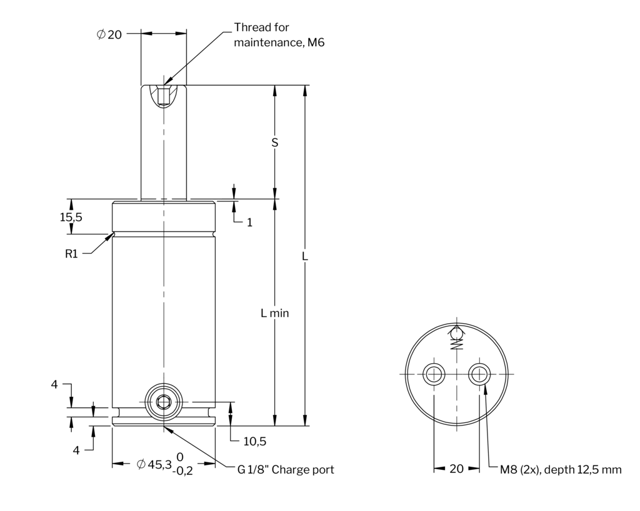

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 3.94 |
| S | Stroke Length (in) | 1.97 |
| L | Total Length (in) | 5.91 |
Item specifications
- End Force At Full Stroke (LBF)1420
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.002472027
- Initial Force at max. pressure (lbf) 1055
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 40-80
- Weight (lb)1.716
