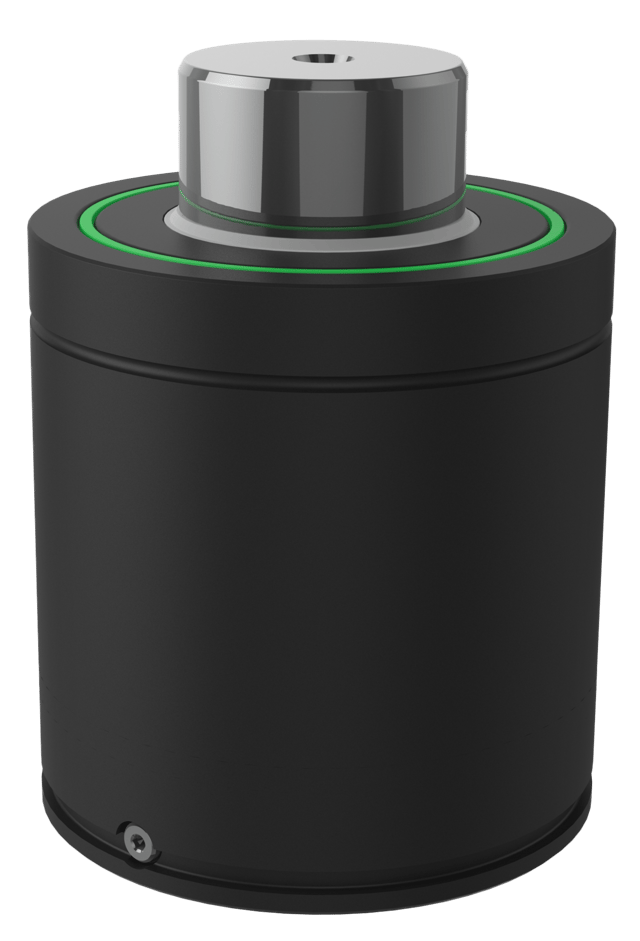

LCF 10000-080
The LCF (Low Contact Force) Gas Springs are crafted to combat common industry challenges and optimize your workflow.
Key Advantages:
1. Shock Load Reduction: Reduce shock loads by up to 50%, safeguarding drive components and gears to minimize maintenance needs.
2. Noise Reduction: Experience quieter operations compared to standard gas springs, for a safer working environment.
3. Pad/ Blank-Holder Bounce Reduction: Minimize pad/ blank-holder bounce for smoother part-transfer efficiency, resulting in enhanced production rates and minimized scrap.
Features:
• 100% compatibility with standard ISO gas springs (e.g., TU Series).
• Seamless retrofit into existing dies.
• Charged and rebuilt with ease, just like standard gas springs.
• Versatile mounting options: choose from drop-in, flange mount, or base plate mounting.
• Ability to be hosed together.
By mounting directly to the die and remaining independent from the press, the advantages of LCF gas springs seamlessly accompany the tool, ensuring efficiency and productivity enhancements throughout your operations.
1. Shock Load Reduction: Reduce shock loads by up to 50%, safeguarding drive components and gears to minimize maintenance needs.
2. Noise Reduction: Experience quieter operations compared to standard gas springs, for a safer working environment.
3. Pad/ Blank-Holder Bounce Reduction: Minimize pad/ blank-holder bounce for smoother part-transfer efficiency, resulting in enhanced production rates and minimized scrap.
Features:
• 100% compatibility with standard ISO gas springs (e.g., TU Series).
• Seamless retrofit into existing dies.
• Charged and rebuilt with ease, just like standard gas springs.
• Versatile mounting options: choose from drop-in, flange mount, or base plate mounting.
• Ability to be hosed together.
By mounting directly to the die and remaining independent from the press, the advantages of LCF gas springs seamlessly accompany the tool, ensuring efficiency and productivity enhancements throughout your operations.

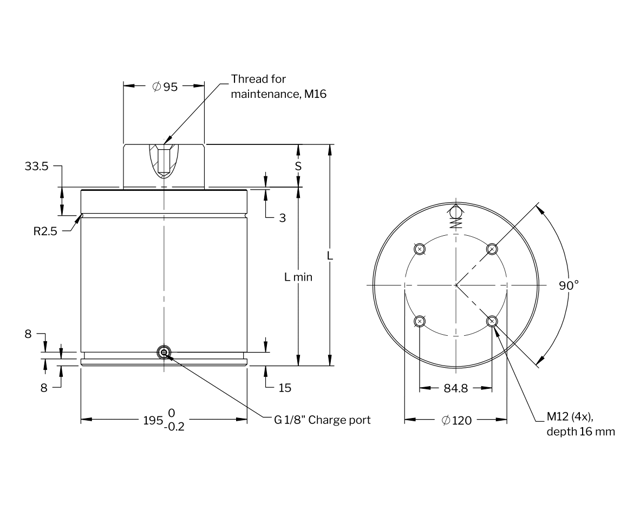

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 9.45 |
| S | Stroke Length (in) | 3.15 |
| L | Total Length (in) | 12.6 |
Item specifications
- End Force At Full Stroke (LBF)34170
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.06992304
- Initial Force at max. pressure (lbf) 23830
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)95.04
