MC3-10-Black
The MC3 spring is based on the M2 spring, using the same piston rod and internal components.
The body of the spring and the mount are designed to meet the ISO dimension found in ISO 11901 as well as in VDI 3003.
Each spring is color-coded for easy identification of force rating. We also offer a model with adjustable force (black) that can be customized to meet individual force requirements. The adjustable model may be set to the desired pressure when ordered from us or by customers with charging equipment.
The spring can be attached to the tool, using an FC-MC or FFC-MC mount. The M6 thread in the base of the spring is used for charging and is also a mounting option.
Each spring is color-coded for easy identification of force rating. We also offer a model with adjustable force (black) that can be customized to meet individual force requirements. The adjustable model may be set to the desired pressure when ordered from us or by customers with charging equipment.
The spring can be attached to the tool, using an FC-MC or FFC-MC mount. The M6 thread in the base of the spring is used for charging and is also a mounting option.

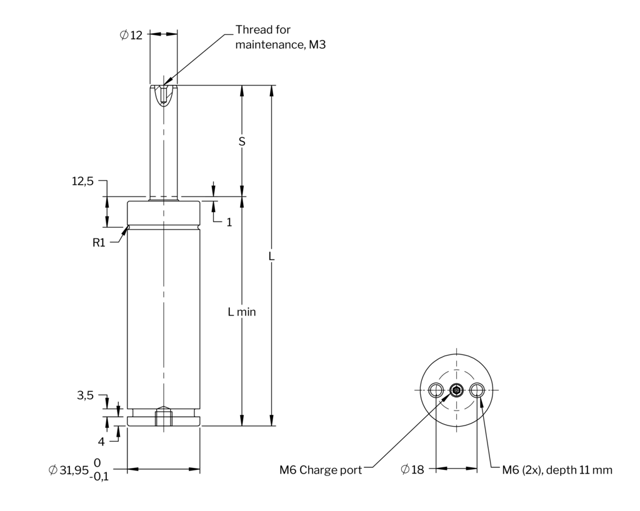

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 2.36 |
| S | Stroke Length (in) | 0.39 |
| L | Total Length (in) | 2.76 |
Item specifications
- End Force At Full Stroke (LBF)688
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.000176573
- Initial Force at max. pressure (lbf) 450
- Max Charging Pressure (Psi)2610
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~80-100
- Weight (lb)0.66
Accessories
Recommended mounts
- FFC-MC-150
Preview - FCS-32
Preview - S-MC
