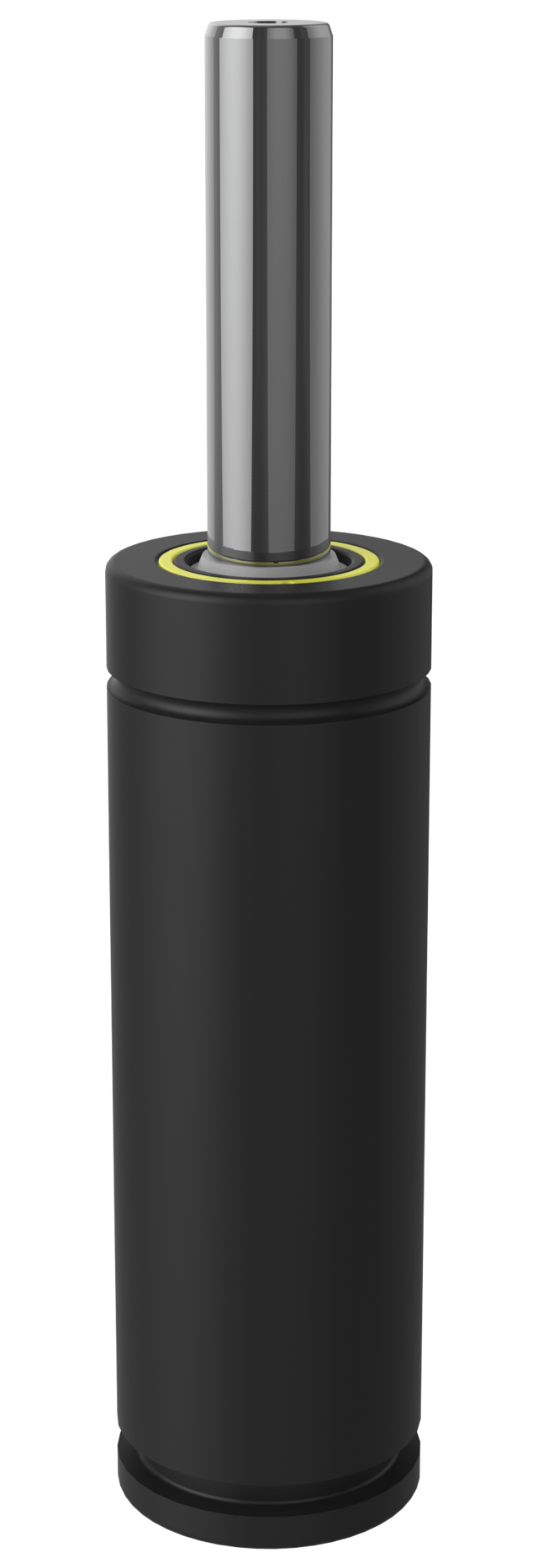

MC3-SP-10-Red
The MC3-SP spring s equipped with a M6 side charge port compared to the M6 bottom charge port on the MC3.
The body of the spring and the mount are designed to meet the ISO dimension found in ISO 11901 as well as in VDI 3003 and the current GM standard, GMGDS 90.25.00-1.5-XXX.
Each spring is color-coded in red and black for easy identification of force rating. The adjustable force (black) that can be customized to meet individual force requirements. The adjustable model may be set to the desired pressure when ordered from us or by customers with charging equipment.
The spring can be attached to the tool, using an FC-MC or FFC-MC mount. The M6 thread in the base of the spring is used for charging and is also a mounting option.
Each spring is color-coded in red and black for easy identification of force rating. The adjustable force (black) that can be customized to meet individual force requirements. The adjustable model may be set to the desired pressure when ordered from us or by customers with charging equipment.
The spring can be attached to the tool, using an FC-MC or FFC-MC mount. The M6 thread in the base of the spring is used for charging and is also a mounting option.

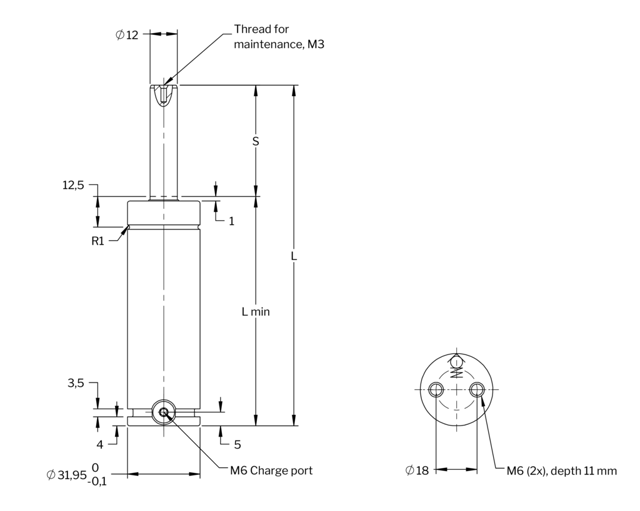

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 2.36 |
| S | Stroke Length (in) | 0.39 |
| L | Total Length (in) | 2.76 |
Item specifications
- Charging Pressure (Psi)1958
- End Force At Full Stroke (LBF)517
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.000176573
- Initial Force at max. pressure (lbf) 340
- Max Charging Pressure (Psi)2610
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~80-100
- Weight (lb)0.66
