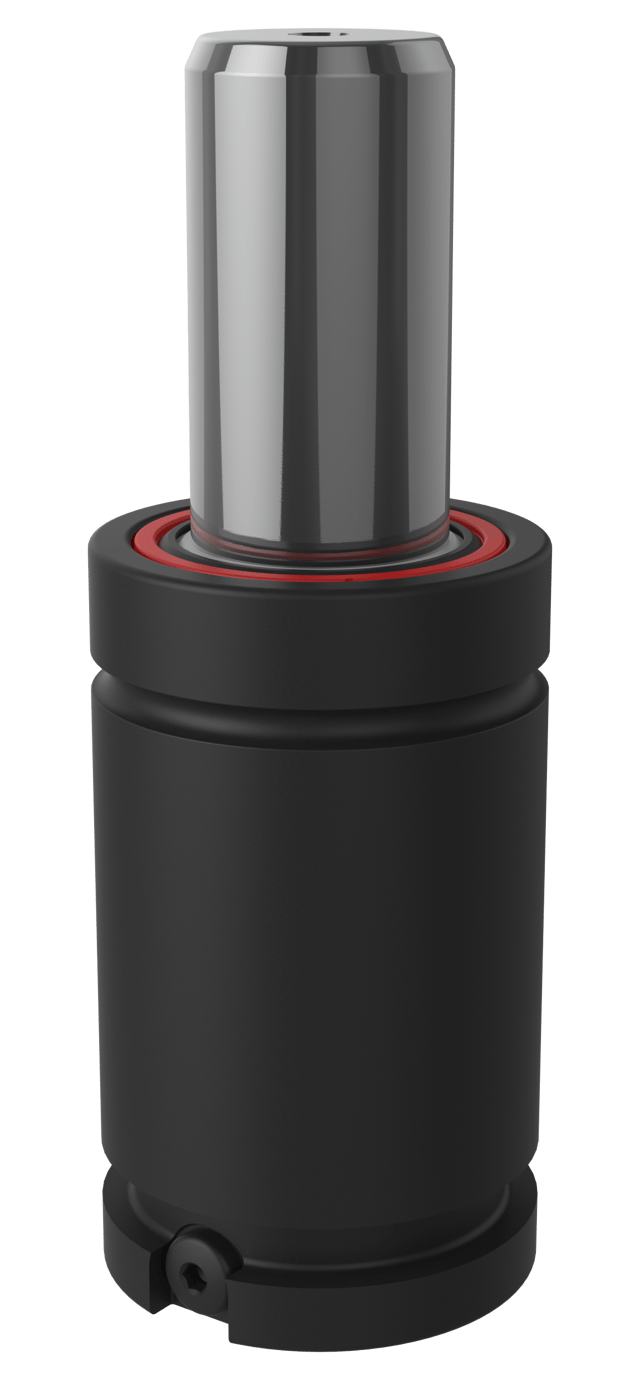

MT 1000-019

Mould Temp gas springs have been engineered to withstand higher working temperatures, like those commonly associated with plastic moulding tools.

Mould Temp gas springs are compact and powerful piston rod sealed gas springs, which can be used at working temperatures up to 120°C.

Features:

For applications up to 120°C
Fully adjustable charge pressure

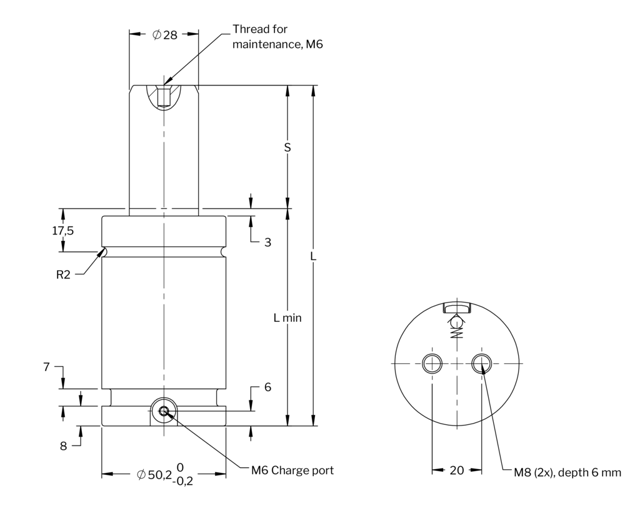

Various mounting possibilities using our standard mounts as well as bottom threaded holes
M6 gas ports that can be connected to the special high temp version of our Micro EO24 Hose and Tube system for remote pressure control

Max working temp interval	Max strokes per minute [spm]	Max charging pressure at 20°C [bar]	Initial force [N]	End force [N]
0-80°C	20	150	11130 (at 80°C) (9200 at 20°C)	17500 (at 80°C) (14500 at 20°C)
80-100°C	15	125	9800 (at 100°C) (7700 at 20°C)	15400 (at 100°C) (12100 at 20°C)
100-120°C	10	115	9500 (at 120°C) (7080 at 20°C)	14900 (at 120°C) (11100 at 20°C)
