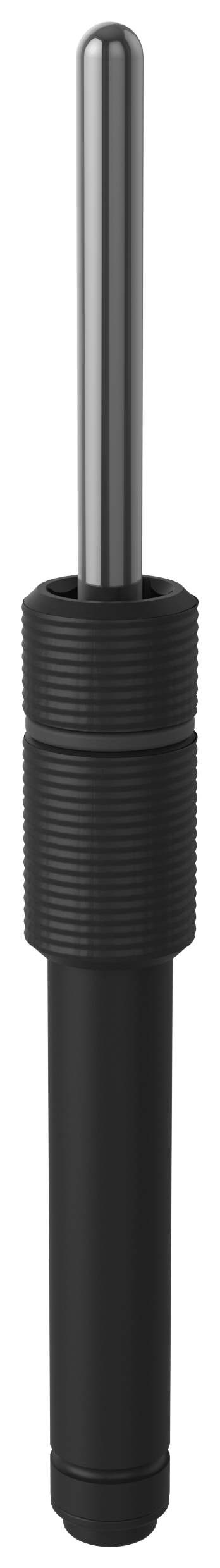

MT 16-10
Mould Temp gas springs have been engineered to withstand higher working temperatures, like those commonly associated with plastic moulding tools.
Mould Temp gas springs are compact and powerful piston rod sealed gas springs, which can be used at working temperatures up to 120°C.
Features:
Features:
- For applications up to 120°C
- Fully adjustable charge pressure
- Various mounting possibilities using our standard mounts as well as bottom threaded holes
- MT 16 and MT 24 have threaded upper cylinders for easy and adjustable mounting
- M6 gas ports that can be connected to the special high temp version of our Micro EO24 Hose and Tube system for remote pressure control
| Max working temp interval |
Max strokes per minute [spm] |
Max charging pressure at 20°C [bar] |
Initial force [N] |
End force [N] |
|---|---|---|---|---|
| 0-80°C | 20 | 150 | 510 (at 80°C) (420 at 20°C) |
810 (at 80°C) (670 at 20°C) |
| 80-100°C | 15 | 125 | 450 (at 100°C) (355 at 20°C) |
720 (at 100°C) (570 at 20°C) |
| 100-120°C | 10 | 115 | 435 (at 120°C) (325 at 20°C) |
700 (at 120°C) (520 at 20°C) |

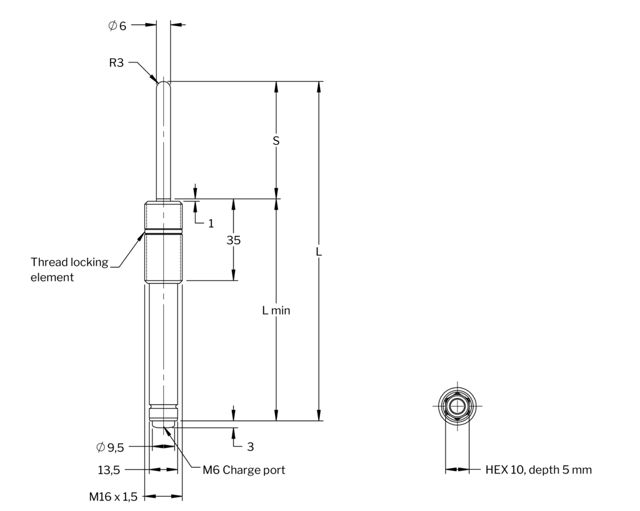

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 2.17 |
| S | Stroke Length (in) | 0.39 |
| L | Total Length (in) | 2.56 |
Item specifications
- End Force At Full Stroke (LBF)160
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.000105944
- Initial Force at max. pressure (lbf) 95
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)196.85
- Max. Operating Temperature (F)248
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute20
- Weight (lb)0.286
