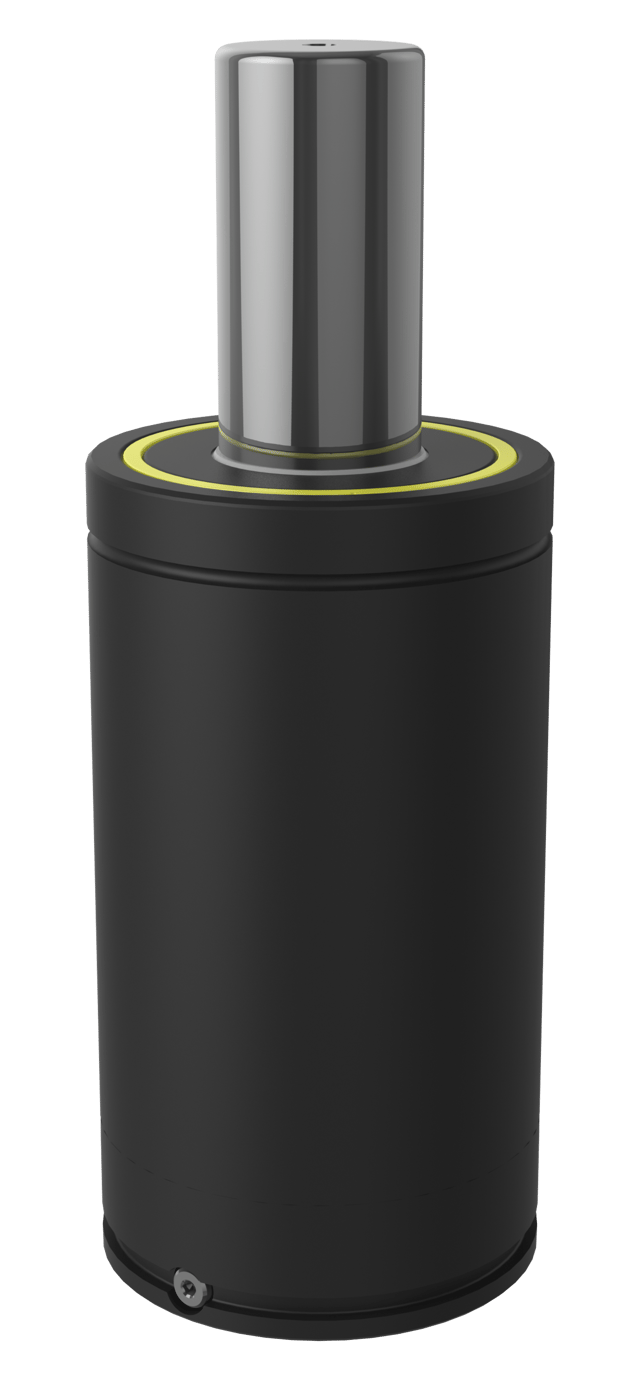

SPC 5000-200

SPC 5000-200

Speed Control – SPC gas springs have been engineered to eliminate blank holder bounce, commonly associated with increased return stroke speeds from new generation of presses.
SPC gas springs have inbuilt return stroke speed dampening, which decelerates the last 30 mm of the piston rod stroke to 0.4 m/s, helping to bring the blank holder to a smooth stop. Speed Control – SPC features: • Eliminates blank holder bounce • Increases productivity by increasing part transfer efficiency • Easily retrofitted to existing dies • Stroke lengths from 125 to 300 mm • Linkable using a hose system
  • Eliminates blank holder bounce
  • Increases productivity by increasing part transfer efficiency
  • Easily retrofitted to existing dies
  • Stroke lengths from 125 to 300 mm
  • Linkable using a hose system
HALLÅHALLÅOverload protection system icon

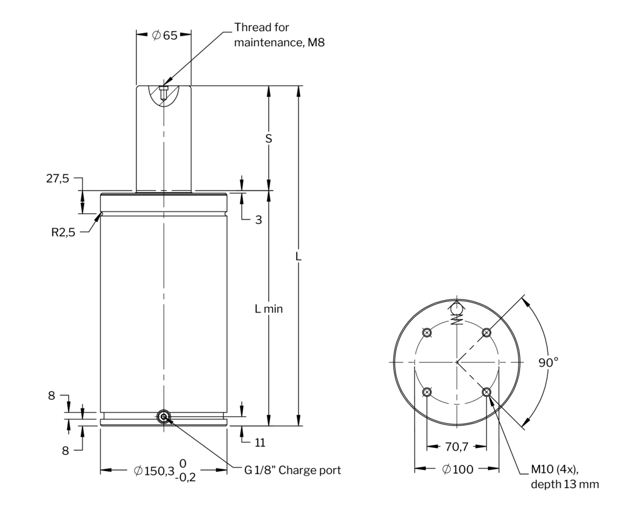

Diagram / specifications section

Preview
L minMinimum Length (in)13.98
SStroke Length (in)7.87
LTotal Length (in)21.85

Item specifications

  • Dampening Speed (Ft/Min)78.74
  • End Force At Full Stroke (LBF)14850
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.09958736
  • Initial Force at max. pressure (lbf) 11240
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per MinuteSee separate file in Documents -> Brochures
  • Weight (lb)69.3
