TI 250-080
The TI is a threaded body 250 spring with the same length as the TU 250.
The TI springs have a UNF 1½-12 inch thread.

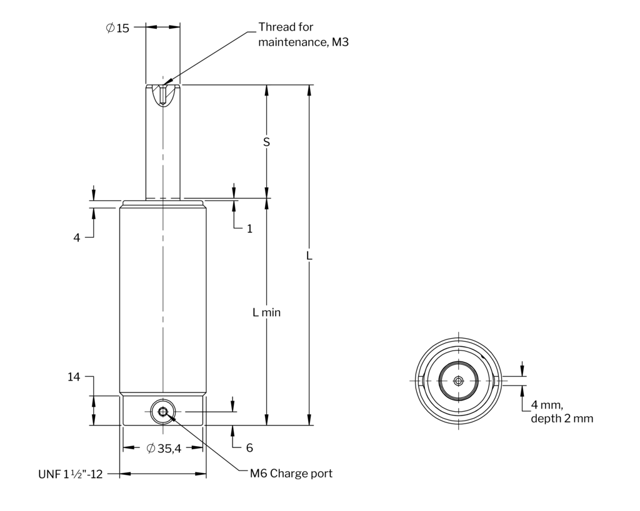

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 5.12 |
| S | Stroke Length (in) | 3.15 |
| L | Total Length (in) | 8.27 |
Item specifications
- End Force At Full Stroke (LBF)790
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.002224824
- Initial Force at max. pressure (lbf) 600
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)725
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)1.408
