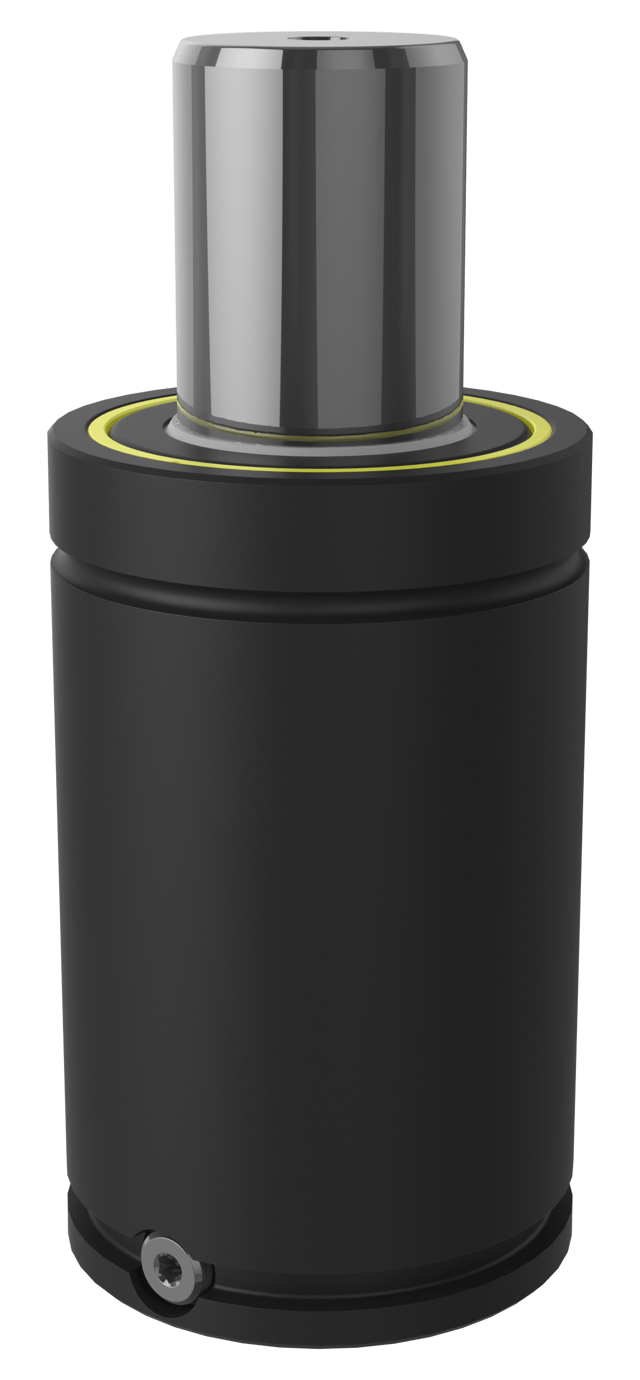

TL 3000-050

TL 3000-050

The TL 3000 gas springs have the same features and technology as the corresponding TU springs, but they are 25 mm shorter.
TL springs share the same TU mounting possibilities and stroke lengths, with exception of strokes 12.5, 37.5 and 62.5.
HALLÅHALLÅOverload protection system icon

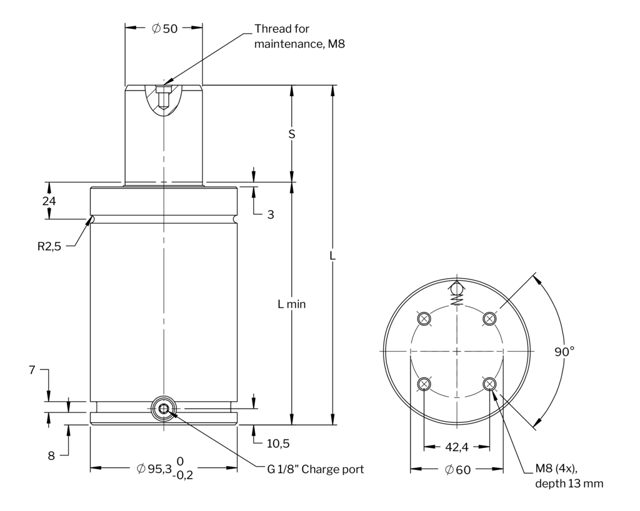

Diagram / specifications section

Preview
L minMinimum Length (in)5.71
SStroke Length (in)1.97
LTotal Length (in)7.68

Item specifications

  • End Force At Full Stroke (LBF)9980
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.01165384
  • Initial Force at max. pressure (lbf) 6750
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~15-40
  • Weight (lb)13.266
