TMS 250-013
The TMS are 250 springs equipped with a threaded stud for mounting.
The TMS (Tube Metric Stud) has a M12 thread.
It has the same basic length as the TU 250 spring.

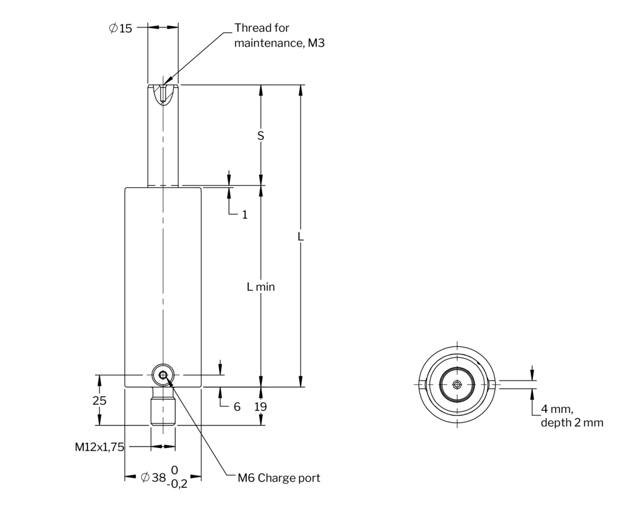

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 2.48 |
| S | Stroke Length (in) | 0.5 |
| L | Total Length (in) | 2.95 |
Item specifications
- End Force At Full Stroke (LBF)765
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.00052972
- Initial Force at max. pressure (lbf) 600
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)725
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)0.99
