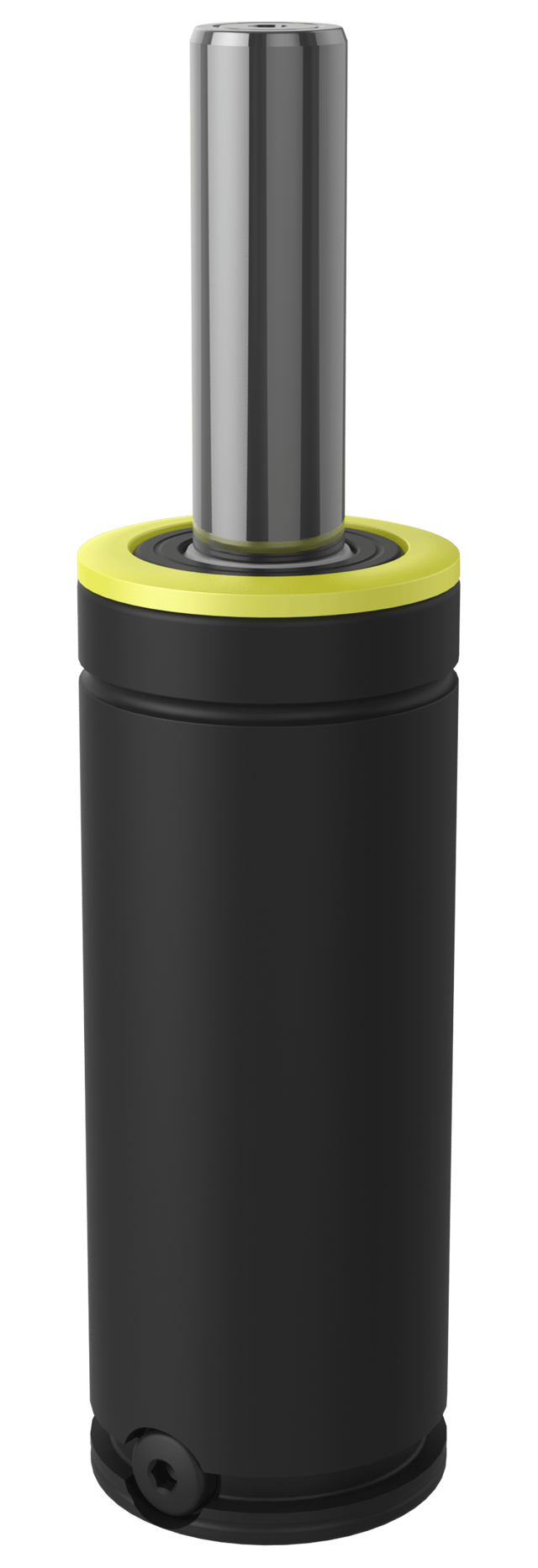

TU 250-013
The TU line constitutes our standard line of gas springs.
The sizes 250 conform to the ISO 11901 gas spring standard as well as VDI 3003.
The total length L is 50 mm + (2 × stroke).
Diagram / specifications section
| L min | Minimum Length (in) | 2.47 |
| S | Stroke Length (in) | 0.5 |
| L | Total Length (in) | 2.97 |
Item specifications
- End Force At Full Stroke (LBF)790
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.000459091
- Initial Force at max. pressure (lbf) 600
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)725
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)0.924
