TU 3000-025
The TU line constitutes our standard line of gas springs.
The sizes 3000 conform to the ISO 11901
standard for gas springs.

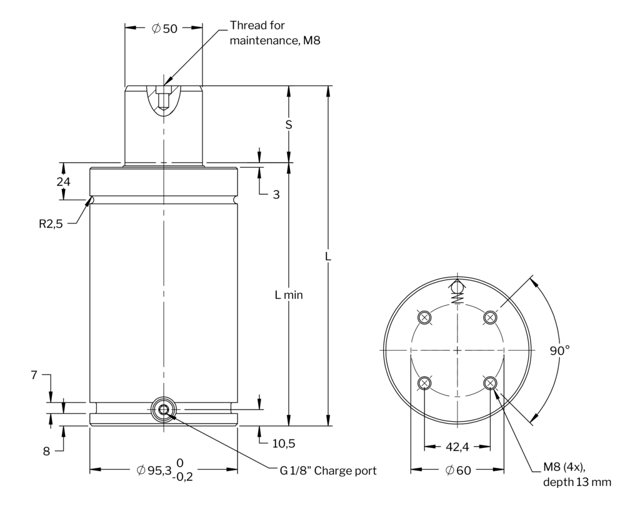

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 5.71 |
| S | Stroke Length (in) | 0.98 |
| L | Total Length (in) | 6.69 |
Item specifications
- End Force At Full Stroke (LBF)9440
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.007062933
- Initial Force at max. pressure (lbf) 6750
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)14.19
