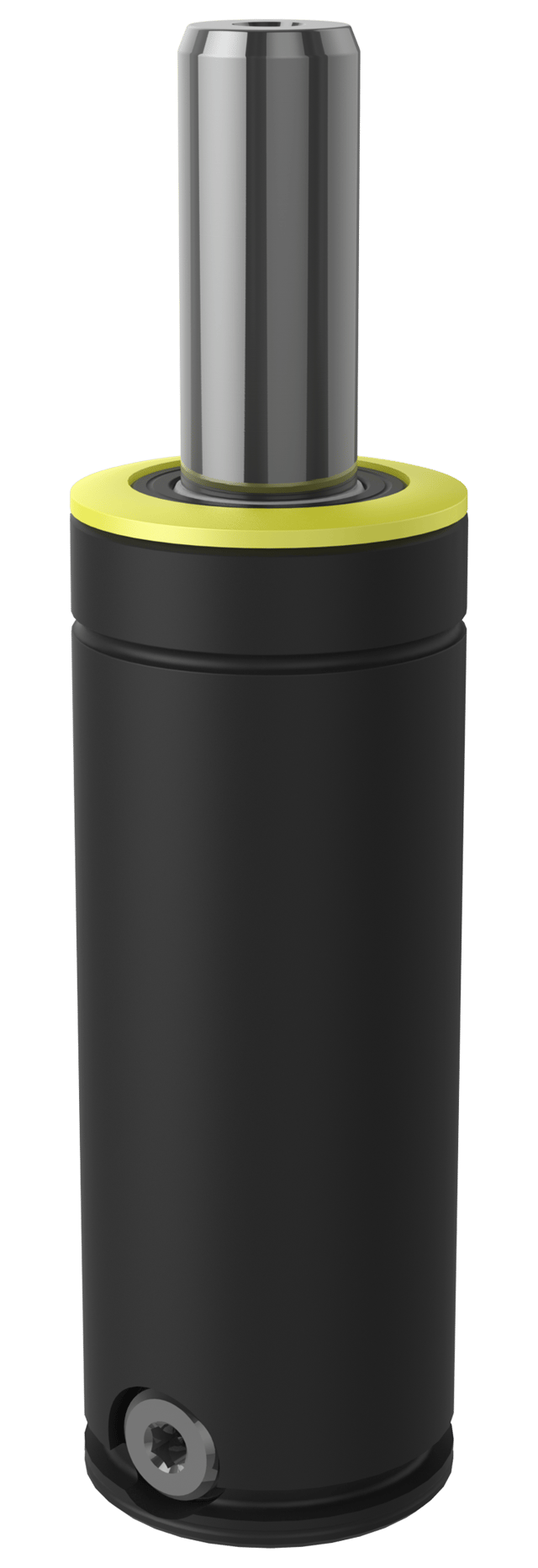

TU 500-013

TU 500-013

The TU line constitutes our standard line of gas springs.
The sizes 550 conform to the ISO 11901 gas spring standard. The TU 500 has a total length of 85 mm + (2 × stroke).
HALLÅHALLÅOverload protection system icon

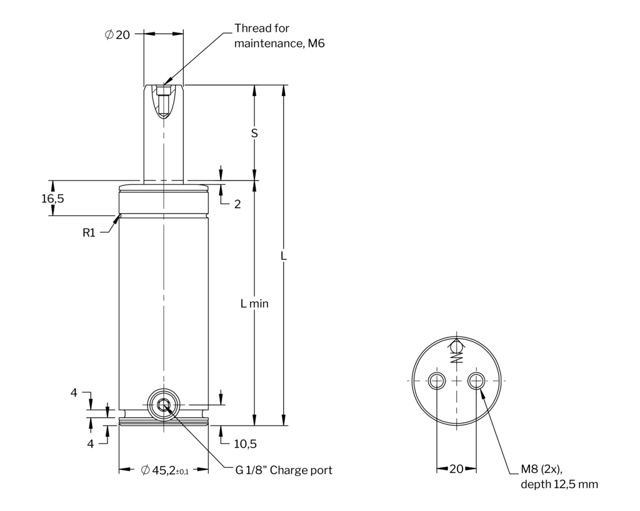

Diagram / specifications section

Preview
L minMinimum Length (in)3.85
SStroke Length (in)0.5
LTotal Length (in)4.35

Item specifications

  • End Force At Full Stroke (LBF)1370
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.000882867
  • Initial Force at max. pressure (lbf) 1055
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~ 40-80
  • Weight (lb)2.09
