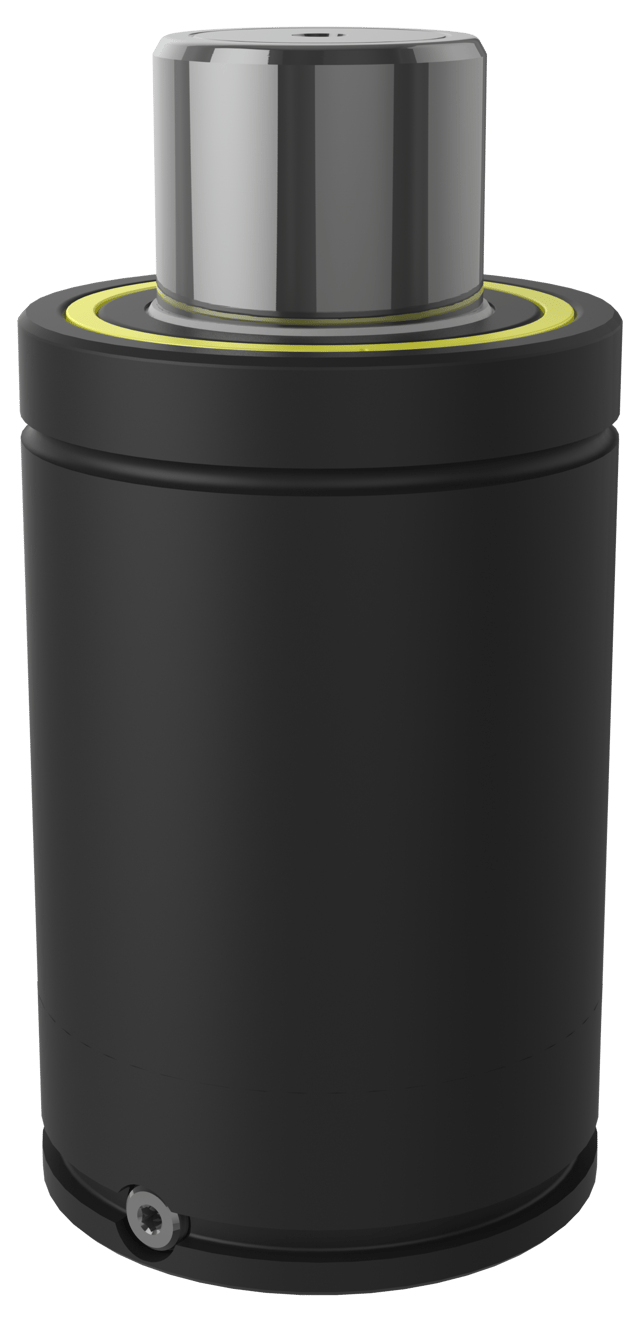

TU 5000-025

TU 5000-025

The TU line constitutes our standard line of gas springs.
The sizes 5000 conform to the ISO 11901 standard for gas springs.
HALLÅHALLÅOverload protection system icon

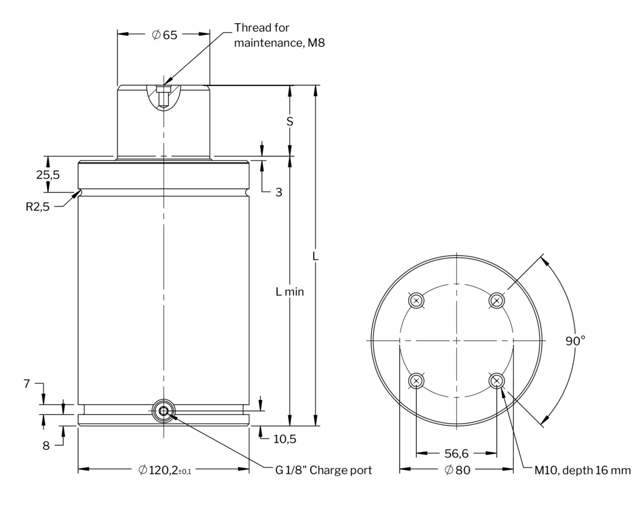

Diagram / specifications section

Preview
L minMinimum Length (in)6.5
SStroke Length (in)0.98
LTotal Length (in)7.48

Item specifications

  • End Force At Full Stroke (LBF)15960
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.011300693
  • Initial Force at max. pressure (lbf) 11240
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~15-40
  • Weight (lb)27.28
