TU 750-125
The TU line constitutes our standard line of gas springs.
The sizes 750 conform to the ISO 11901
standard for gas springs.

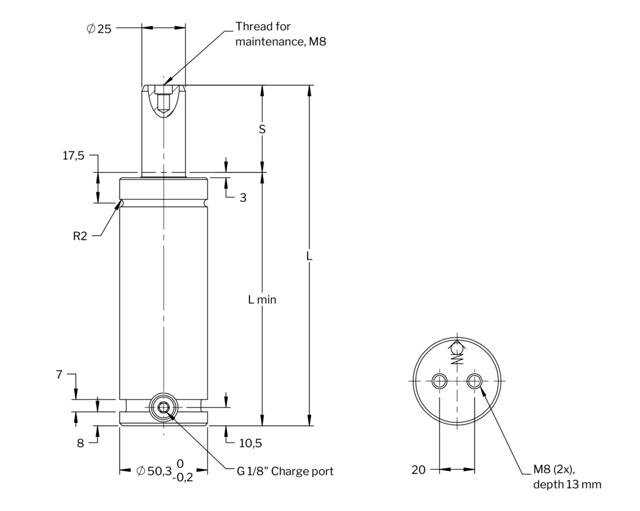

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 8.66 |
| S | Stroke Length (in) | 4.92 |
| L | Total Length (in) | 13.58 |
Item specifications
- End Force At Full Stroke (LBF)2720
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.006003493
- Initial Force at max. pressure (lbf) 1665
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)5.214
