TUR 10000-080

TUR 10000-080

The TUR 10000 gas spring conforms to the ISO 11901-1 and the Renault automotive gas spring standards. In full compliance with the Renault requirements, it features an overstroke protection system.
For sizes 750 up to 7,500, please refer to the TUS High Speed gas springs.
HALLÅHALLÅOverload protection system icon

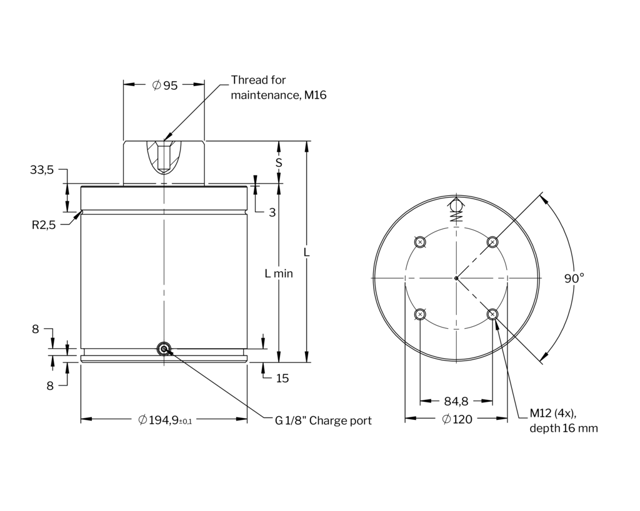

Diagram / specifications section

Preview
L minMinimum Length (in)9.45
SStroke Length (in)3.15
LTotal Length (in)12.6

Item specifications

  • End Force At Full Stroke (LBF)34170
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.0741608
  • Initial Force at max. pressure (lbf) 23830
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~15-40
  • Weight (lb)92.18
