TUS 3000-025
The TUS High Speed gas springs have been engineered to withstand press stroke speeds to a maximum of 2 m/s, which meets the safety requirements from the French automotive manufacturer Renault.
These gas springs conform to the ISO 11901 gas spring standard.
The TUS gas spring replaces TUR spring that has been phased out.

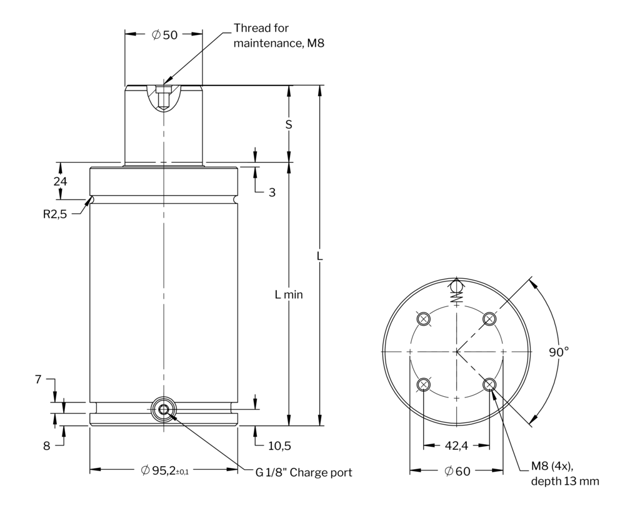

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 5.71 |
| S | Stroke Length (in) | 0.98 |
| L | Total Length (in) | 6.69 |
Item specifications
- End Force At Full Stroke (LBF)9440
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.007062933
- Initial Force at max. pressure (lbf) 6750
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)393.7
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)13.97
