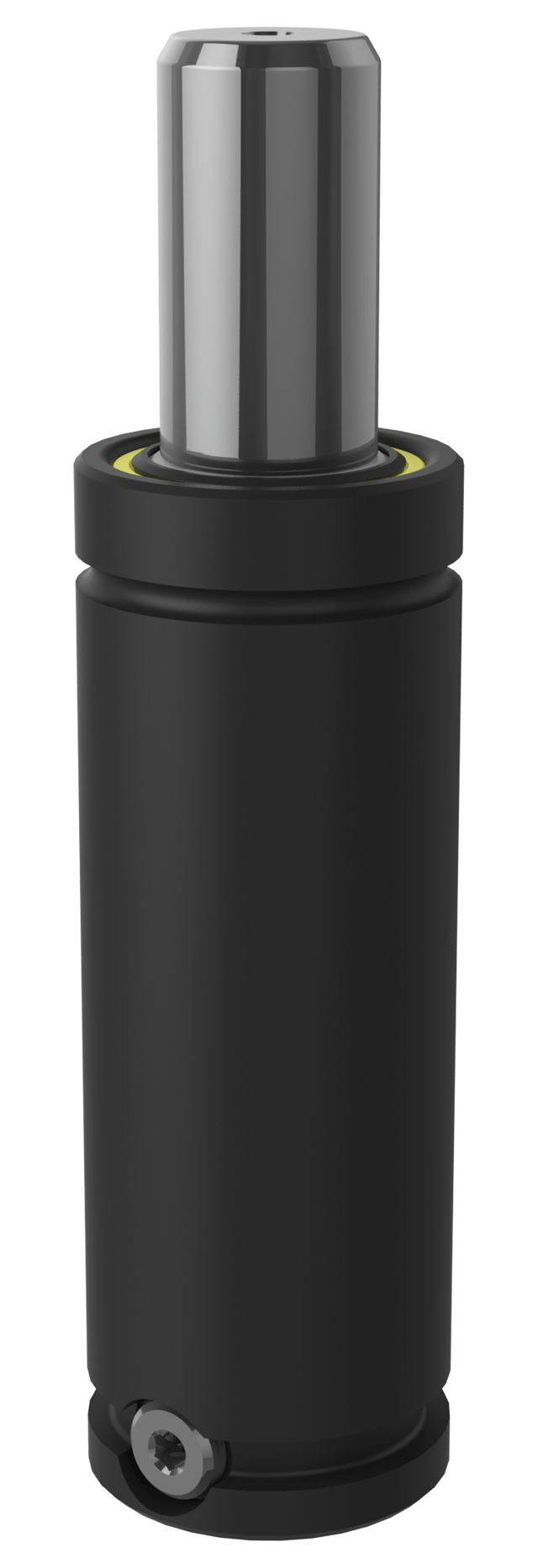

TX 1000-050
The Power Line – Heavy Duty Series is a crossover between the standard TU Series and the Power Line X Series.
An upper C-groove, lower U-groove and bottom threaded holes allow various mounting possibilities using our standard mounts.

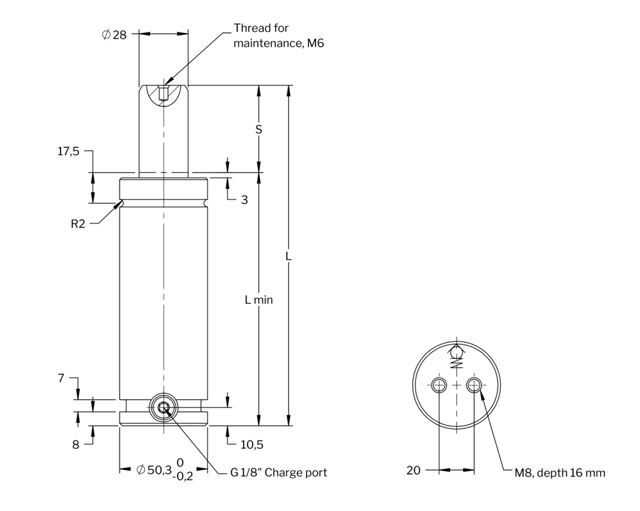

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 5.71 |
| S | Stroke Length (in) | 1.97 |
| L | Total Length (in) | 7.68 |
Item specifications
- End Force At Full Stroke (LBF)2975
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.003884613
- Initial Force at max. pressure (lbf) 2068
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~50-100
- Weight (lb)3.014
