TX 20000-063

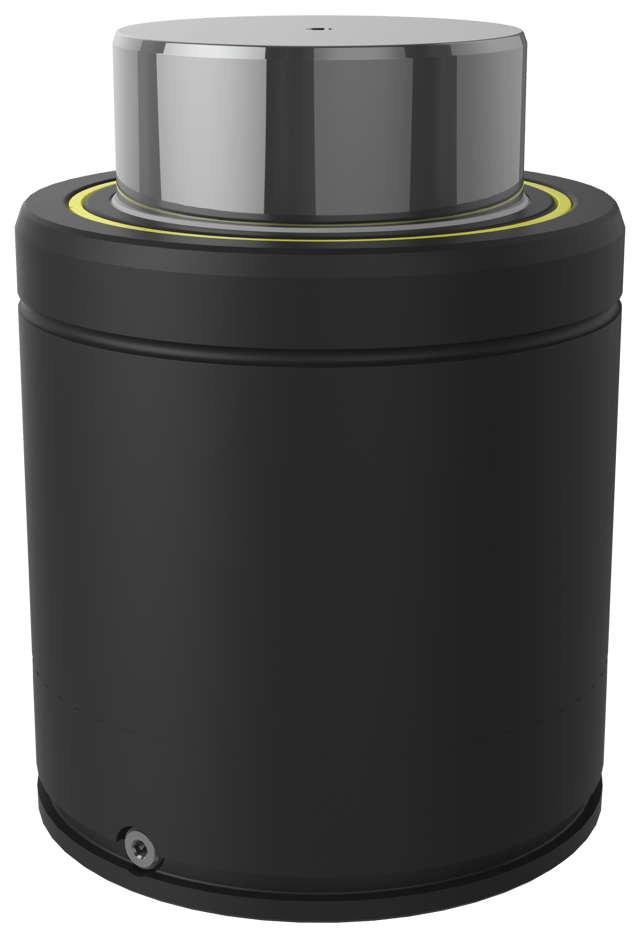

The Power Line – Heavy Duty Series is a crossover between the standard TU Series and the Power Line X Series.
An upper C-groove, lower U-groove and bottom threaded holes allow various mounting possibilities using our standard mounts.

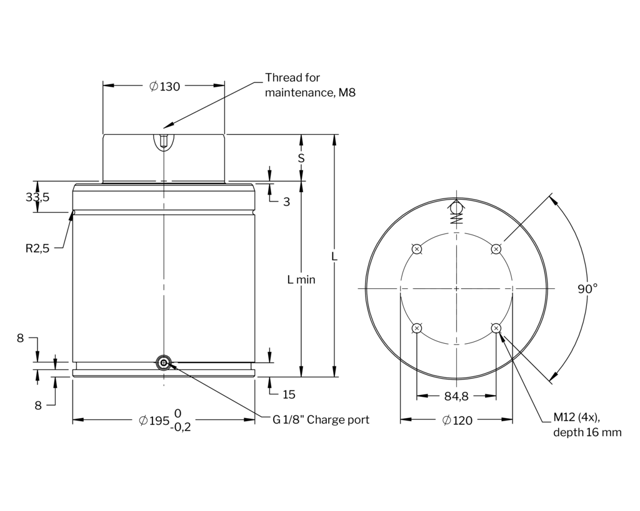

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 8.78 |
| S | Stroke Length (in) | 2.48 |
| L | Total Length (in) | 11.26 |
Item specifications
- End Force At Full Stroke (LBF)62048
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.1112412
- Initial Force at max. pressure (lbf) 45000
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-100
- Weight (lb)70.84
