TX 6600-080

TX 6600-080

The Power Line – Heavy Duty Series is a crossover between the standard TU Series and the Power Line X Series.
An upper C-groove, lower U-groove and bottom threaded holes allow various mounting possibilities using our standard mounts.
HALLÅHALLÅOverload protection system icon

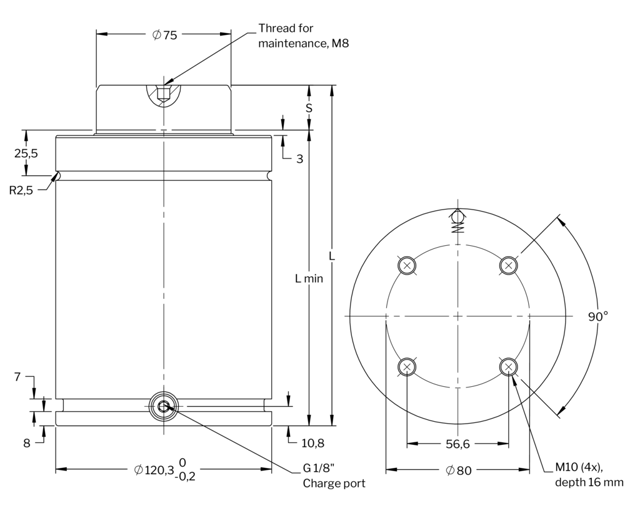

Diagram / specifications section

Preview
L minMinimum Length (in)8.66
SStroke Length (in)3.15
LTotal Length (in)11.81

Item specifications

  • End Force At Full Stroke (LBF)20825
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.046262213
  • Initial Force at max. pressure (lbf) 14905
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~30-100
  • Weight (lb)25.344
