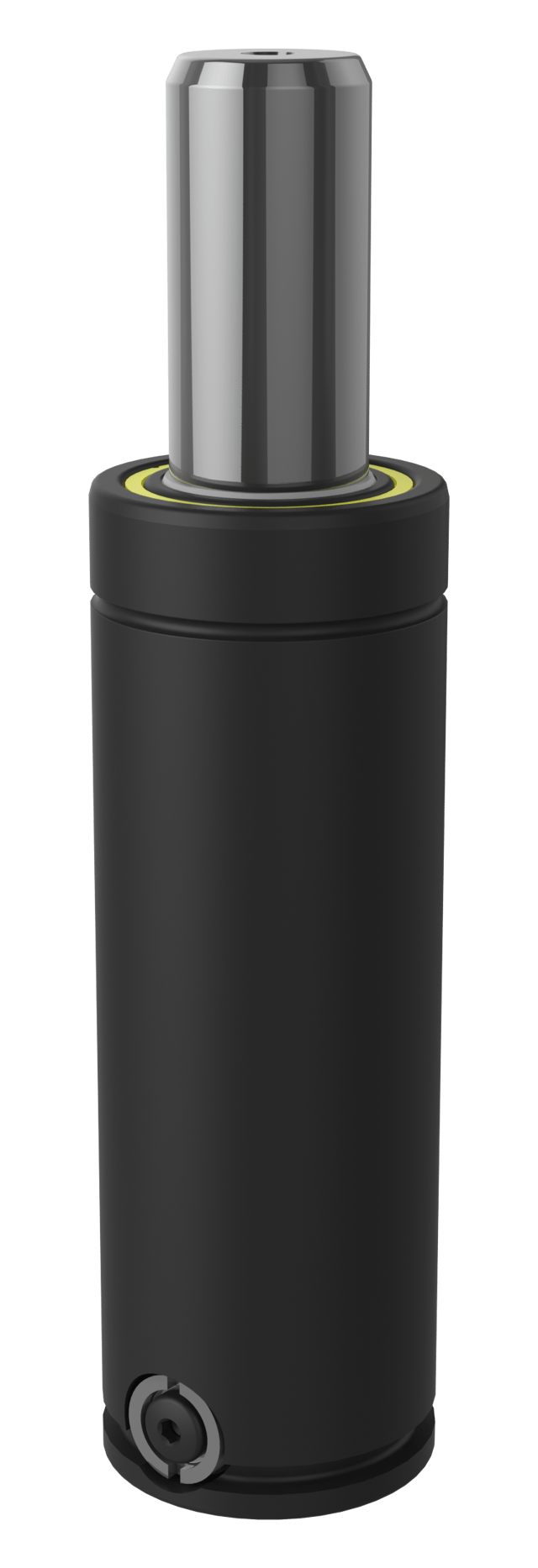

TX 750-075

TX 750-075

The Power Line – Heavy Duty Series is a crossover between the standard TU Series and the Power Line X Series.
An upper C-groove, lower U-groove and bottom threaded holes allow various mounting possibilities using our standard mounts.
HALLÅHALLÅOverload protection system icon

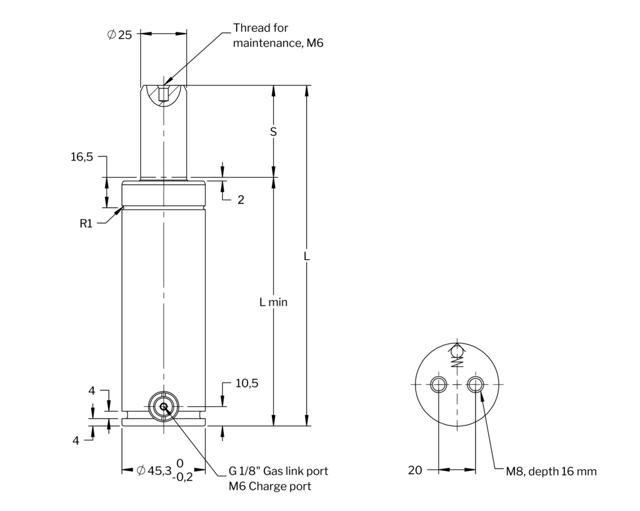

Diagram / specifications section

Preview
L minMinimum Length (in)6.3
SStroke Length (in)2.95
LTotal Length (in)9.25

Item specifications

  • End Force At Full Stroke (LBF)2700
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.00423776
  • Initial Force at max. pressure (lbf) 1665
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~15-100
  • Weight (lb)2.75
