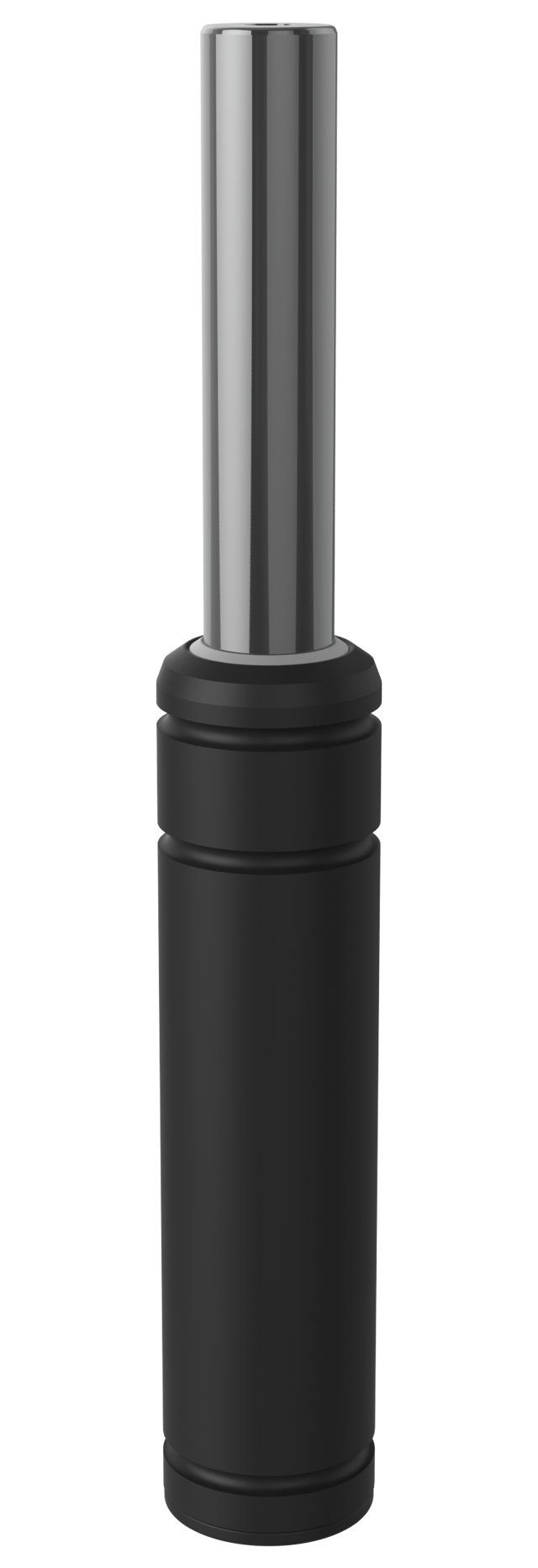

X 170-063
The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.
The X 170 has a bottom port for gas charging that can
also be used to connect to a gas link system.
The X 170 has an upper ISO Standard C-groove and
a lower C-groove, which together with a threaded bottom hole offer various mounting possibilities using our standard mounts.
Diagram / specifications section
Preview
| L min | Minimum Length (in) | 3.66 |
| S | Stroke Length (in) | 2.48 |
| L | Total Length (in) | 6.14 |
Item specifications
- End Force At Full Stroke (LBF)630
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.00052972
- Initial Force at max. pressure (lbf) 382
- Max Charging Pressure (Psi)2610
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~40-100
- Weight (lb)0.264
Accessories
Recommended mounts
- BF-19
Preview - FCR-90
Preview - FCR-19 VDI2
