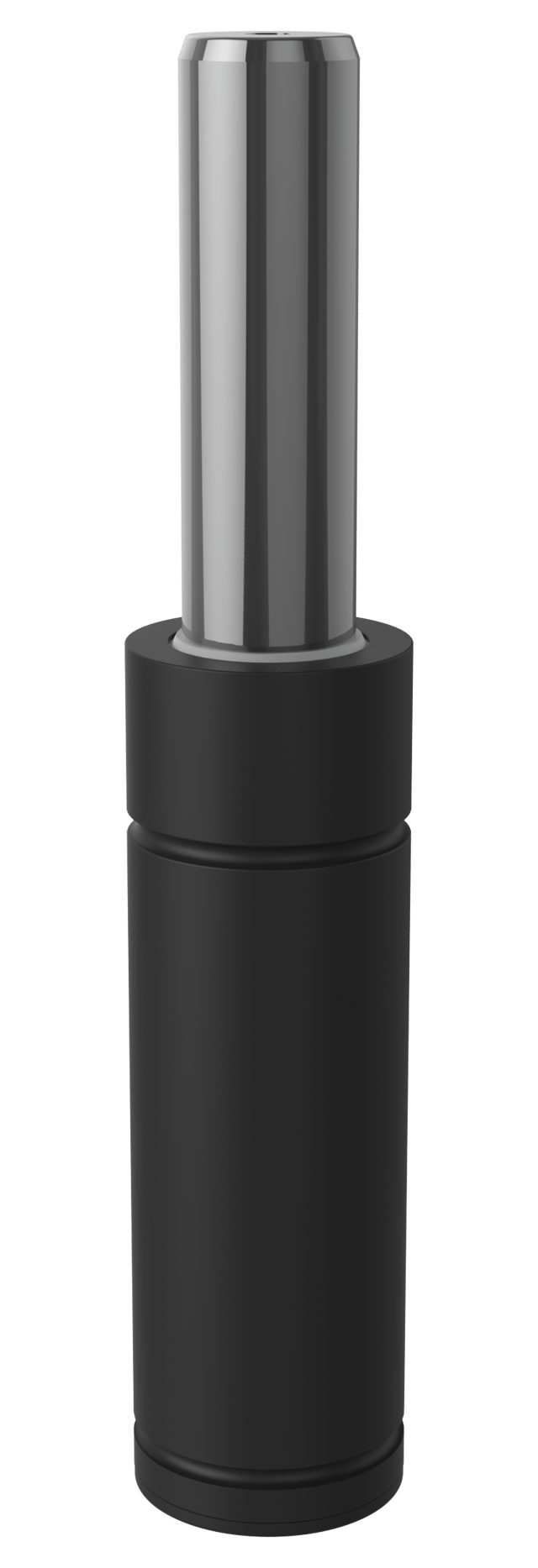

X 320-038

X 320-038

The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.
The X 320 has a bottom port for gas charging that can also be used to connect to a gas link system. The X 320 has an upper ISO Standard C-groove that together with a threaded bottom hole offers various mounting possibilities using our standard mounts.
HALLÅHALLÅOverload protection system icon

Diagram / specifications section

Preview
L minMinimum Length (in)2.68
SStroke Length (in)1.5
LTotal Length (in)4.17

Item specifications

  • End Force At Full Stroke (LBF)1190
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.000600349
  • Initial Force at max. pressure (lbf) 720
  • Max Charging Pressure (Psi)2610
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~40-100
  • Weight (lb)0.352
