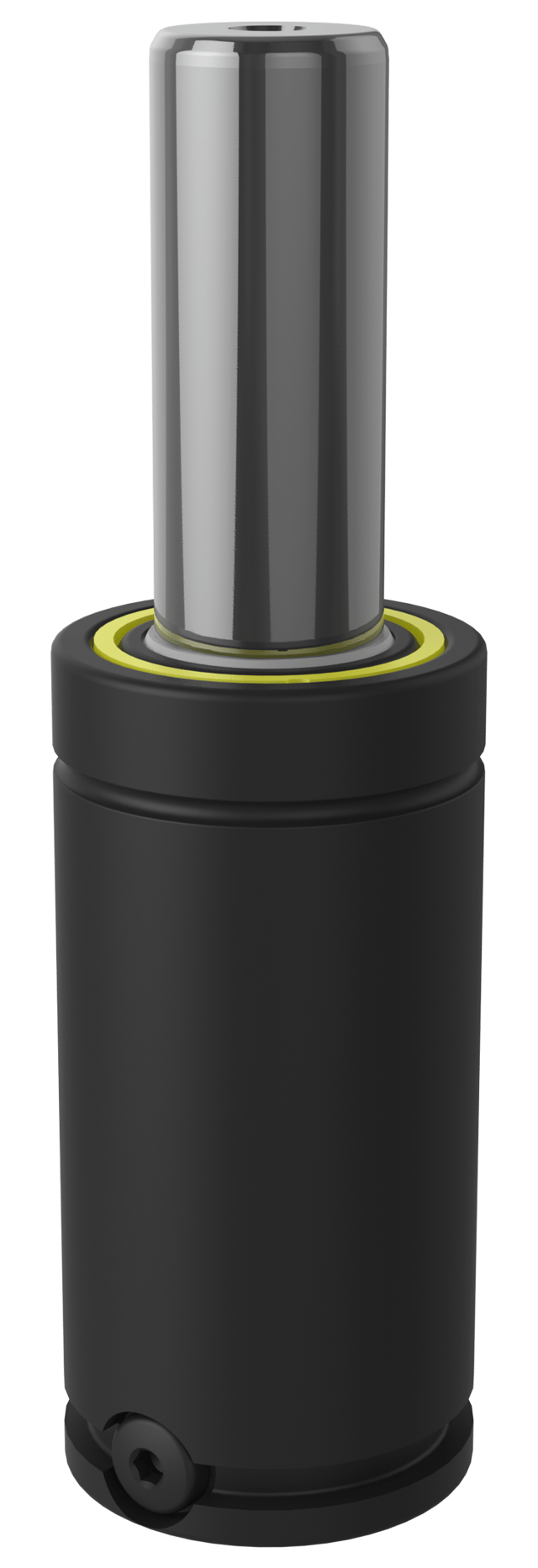

X 500-050

X 500-050

The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.
There is a side port for gas charging that can also be used to connect to a hose system. An upper C-groove, lower U-groove together with two M6 threaded holes allow various mounting possibilities using our standard mounts.
HALLÅHALLÅOverload protection system icon

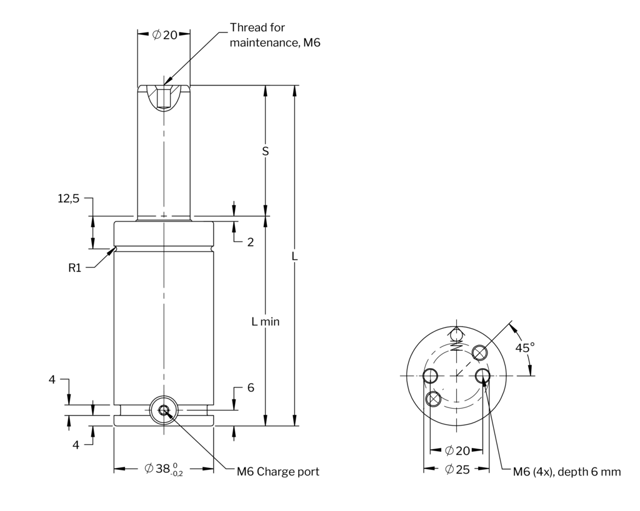

Diagram / specifications section

Preview
L minMinimum Length (in)3.15
SStroke Length (in)1.97
LTotal Length (in)5.12

Item specifications

  • End Force At Full Stroke (LBF)1620
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.001765733
  • Initial Force at max. pressure (lbf) 1055
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~50-100
  • Weight (lb)0.902
