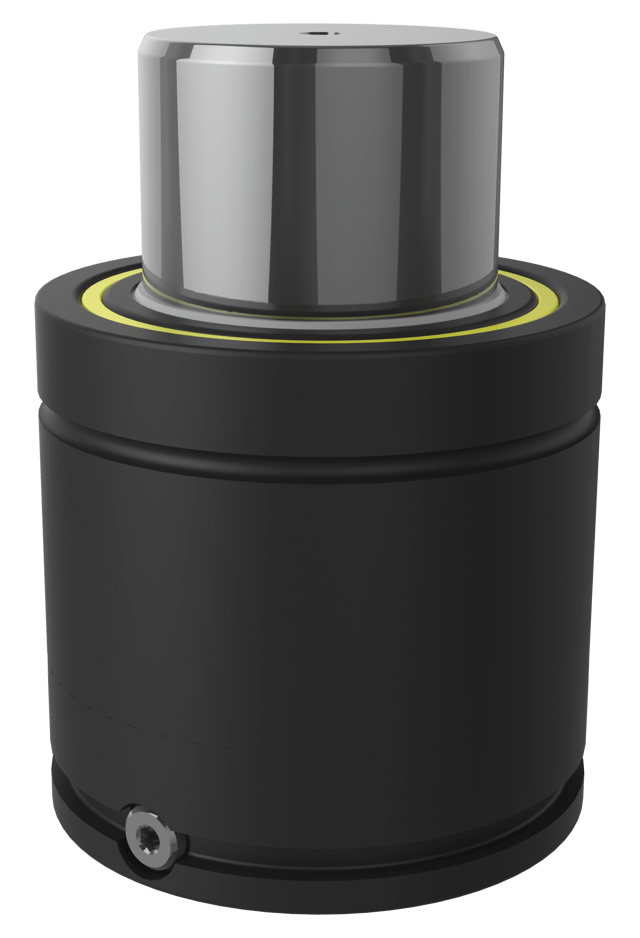

X 6600-100
The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.
There is a side port for gas charging that can also be
used to connect to a hose system.
An upper C-groove, lower U-groove together with four
M10 threaded holes allow various mounting possibilities using our standard mounts.

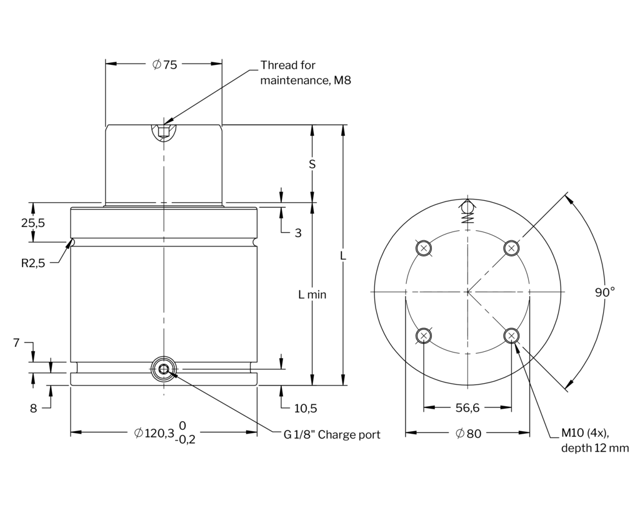

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 6.61 |
| S | Stroke Length (in) | 3.94 |
| L | Total Length (in) | 10.55 |
Item specifications
- End Force At Full Stroke (LBF)23700
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.04343704
- Initial Force at max. pressure (lbf) 14905
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~30-100
- Weight (lb)18.106
