XF 1000-080

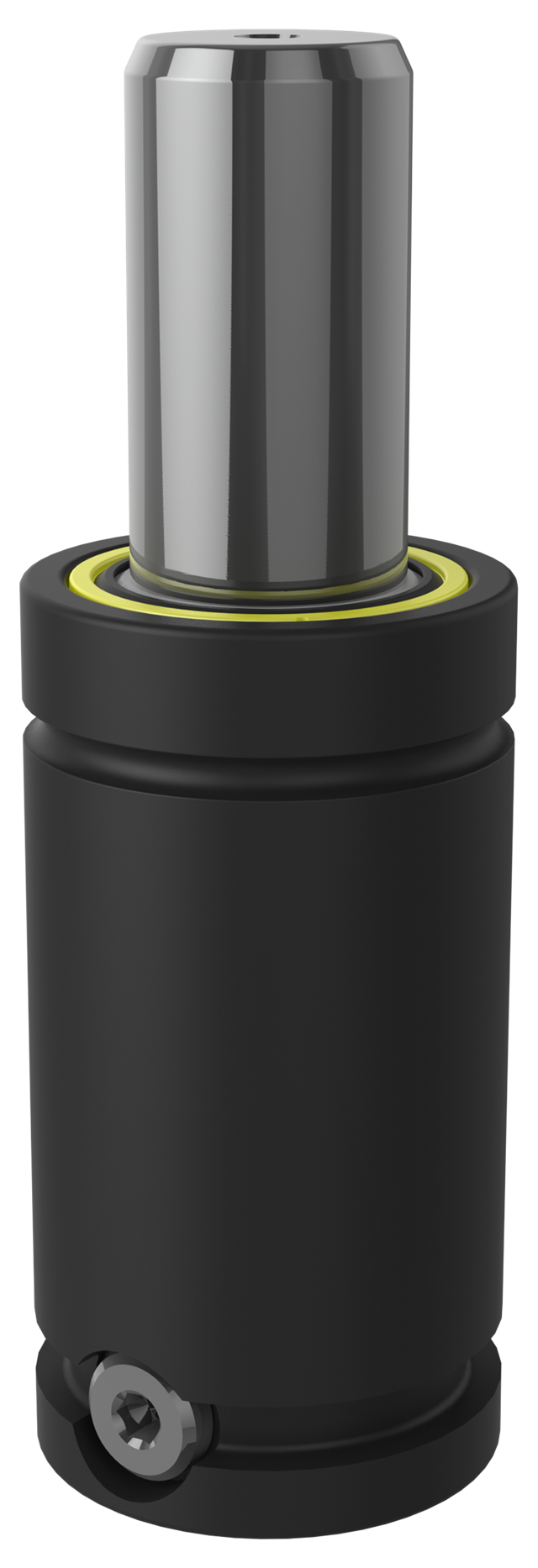

The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.
The Power Line XF series fulfills our gas spring range for FCA Fiat-Chrysler standard 075.90.60. There is a G 1/8” side port for charging or to connect to a gas link system. The upper ISO Standard C-groove and the threaded bottom hole offer various mounting possibilities using our standard mounts.
Diagram / specifications section
Preview
| L min | Minimum Length (in) | 5.04 |
| S | Stroke Length (in) | 3.15 |
| L | Total Length (in) | 8.19 |
Item specifications
- End Force At Full Stroke (LBF)3327
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.004944053
- Initial Force at max. pressure (lbf) 2068
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~50-100
- Weight (lb)2.266
