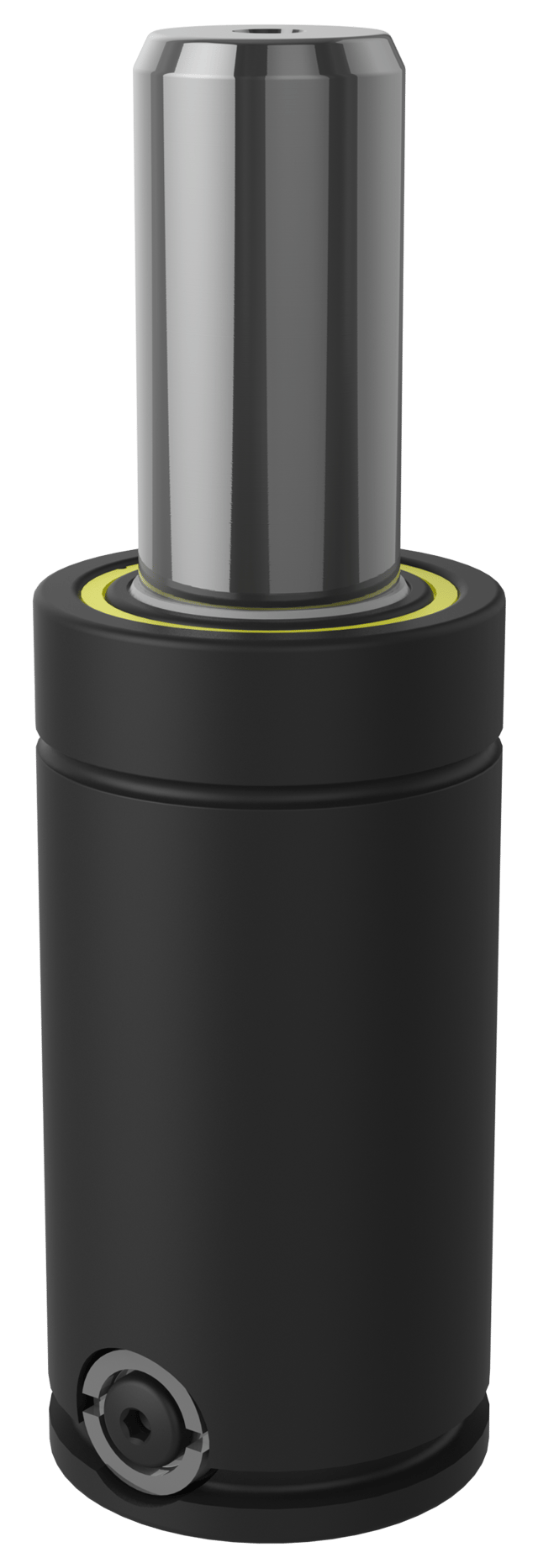

XF 750-050

XF 750-050

The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.
The Power Line XF series fulfills our gas spring range for FCA Fiat-Chrysler standard 075.90.60. There is a G 1/8” side port for charging or to connect to a gas link system. The upper ISO Standard C-groove and the threaded bottom hole offer various mounting possibilities using our standard mounts.
HALLÅHALLÅOverload protection system icon

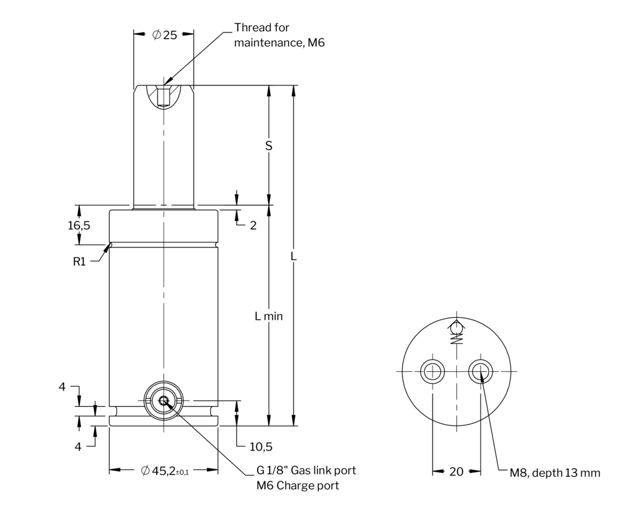

Diagram / specifications section

Preview
L minMinimum Length (in)3.62
SStroke Length (in)1.97
LTotal Length (in)5.59

Item specifications

  • End Force At Full Stroke (LBF)2650
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.002472027
  • Initial Force at max. pressure (lbf) 1665
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~50-100
  • Weight (lb)1.562
