XG 1500-050
The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.
There is a side port for gas charging that can also be used to connect to a hose system.
An upper C-groove, lower U-groove together with two M8 threaded holes allow various mounting possibilities using our standard mounts.

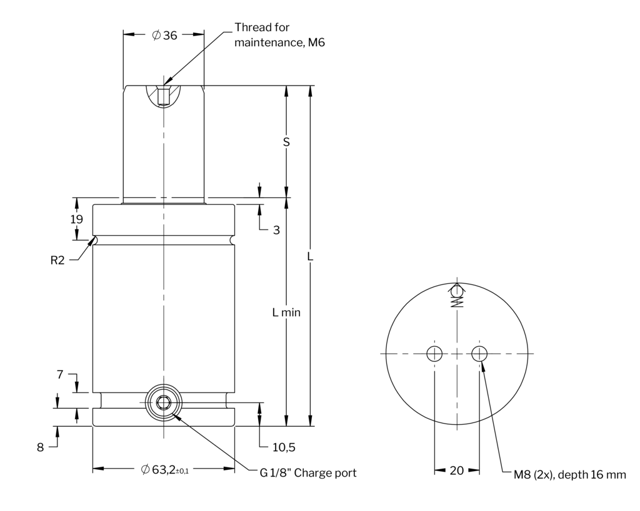

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 4.02 |
| S | Stroke Length (in) | 1.97 |
| L | Total Length (in) | 5.98 |
Item specifications
- End Force At Full Stroke (LBF)5395
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.0052972
- Initial Force at max. pressure (lbf) 3375
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~50-100
- Weight (lb)2.86
