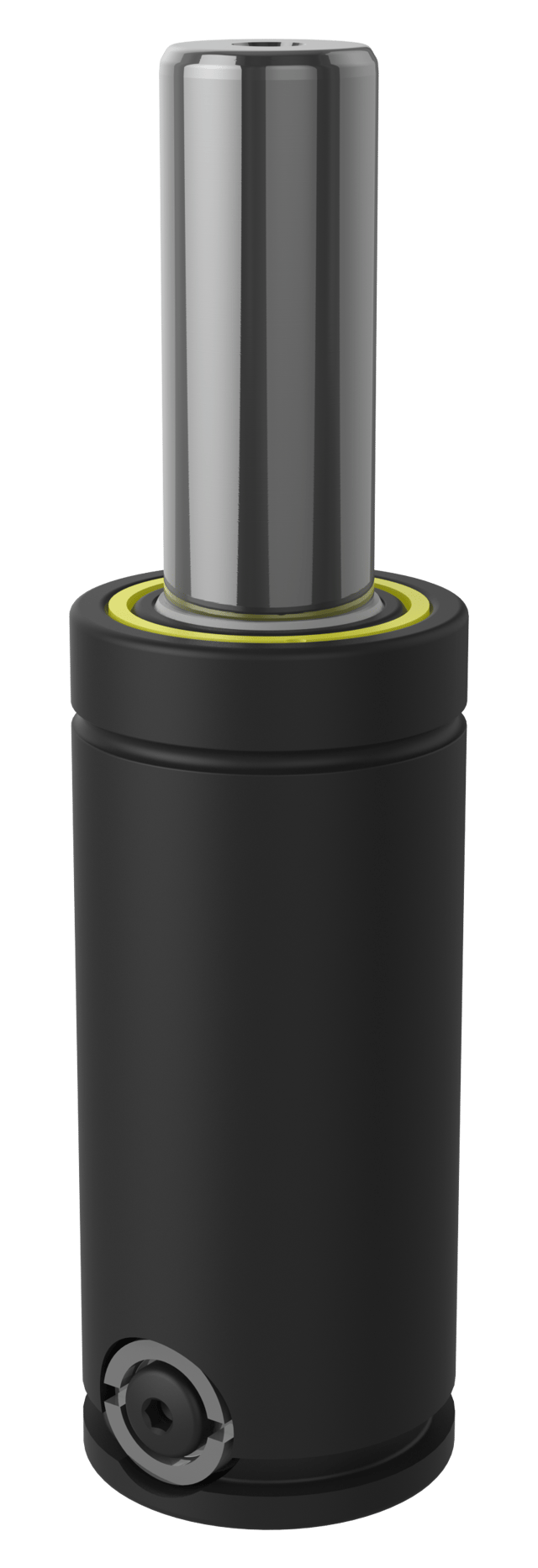

XG 500-025
The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.
There is a side port for gas charging that also can be
used to connect to a hose system.
An upper C-groove, lower U-groove together with two
M6 threaded holes allow various mounting possibilities
using our standard mounts.

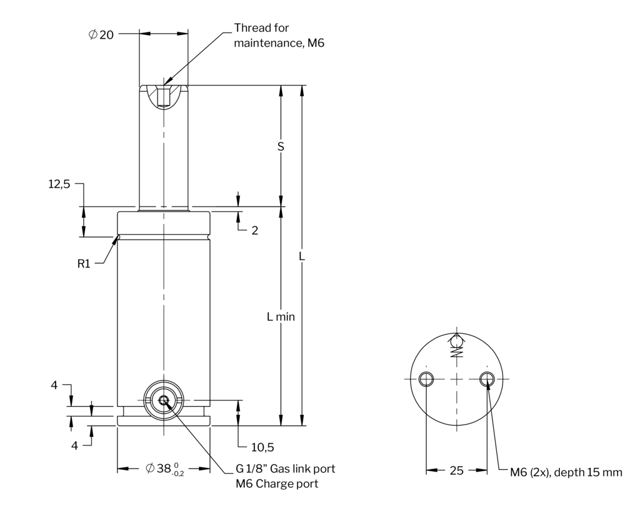

Diagram / specifications section
Preview
| L min | Minimum Length (in) | 2.56 |
| S | Stroke Length (in) | 0.98 |
| L | Total Length (in) | 3.54 |
Item specifications
- End Force At Full Stroke (LBF)1640
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.00105944
- Initial Force at max. pressure (lbf) 1055
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~50-100
- Weight (lb)0.858
