XMS 1000-050

XMS 1000-050

The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.
The XMS 1000 model is the X 1000 equipped with an M16 threaded tap for mounting. When ordering this version XMS 1000-xxx must be stated on the order. There is a side port for gas charging that can also be used to connect to a hose system. An upper C-groove, lower U-groove together with two M8 threaded holes allow various mounting possibilities using our standard mounts.
HALLÅHALLÅOverload protection system icon

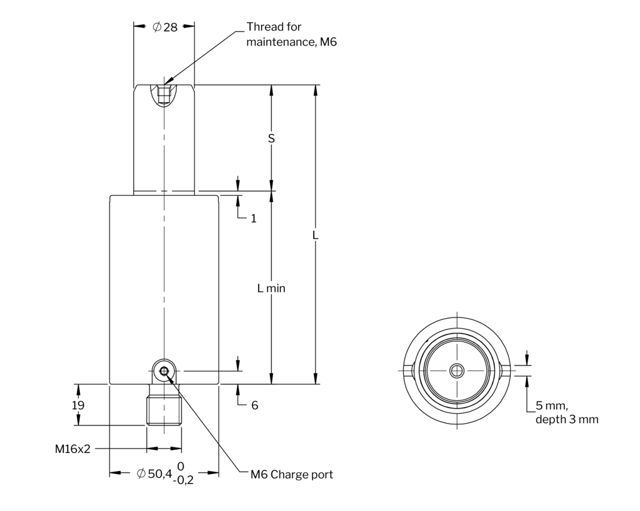

Diagram / specifications section

Preview
L minMinimum Length (in)3.46
SStroke Length (in)1.97
LTotal Length (in)5.43

Item specifications

  • End Force At Full Stroke (LBF)3282
  • Force Increase By Temperature Percent Per (°F)0.17
  • Gas Volume (CuF)0.00317832
  • Initial Force at max. pressure (lbf) 2068
  • Max Charging Pressure (Psi)2175
  • Max Piston Rod Velocity (FtMin)314.96
  • Max. Operating Temperature (F)176
  • Min Charging Pressure (PSI)362
  • Min. Operating Temperature (F)32
  • Recommended Max Strokes Per Minute~50-100
  • Weight (lb)1.738
